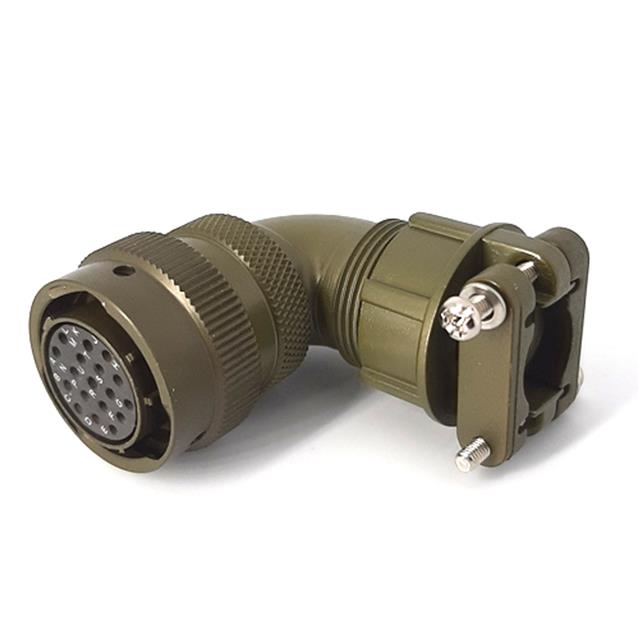

MSW08E14-18S-SR
ActiveMilspecwest, LLC
RIGHT ANGLE CABLE PLUG, WITH STR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MSW08E14-18S-SR |
|---|---|
| Applications | Military |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Cadmium |
| Current Rating (Amps) | 7.5 A |
| Fastening Type | Bayonet Lock |
| Features | Strain Relief |
| Ingress Protection | Environment Resistant |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Positions | 18 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Finish | Cadmium |
| Shell Material | Aluminum |
| Shell Size - Insert [Max] | 18 |
| Shell Size - Insert [Min] | 14 |
| Termination | Solder |
| Voltage Rating | 800 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 30.30 | |
| 10 | $ 28.49 | |||
| 25 | $ 26.67 | |||
| 100 | $ 24.85 | |||
Description
General part information
MSW08E14-18S-SR
18 Position Circular Connector Plug, Female Sockets Solder
