BY25Q20BLAIG(R)
ActiveBYTe Semiconductor

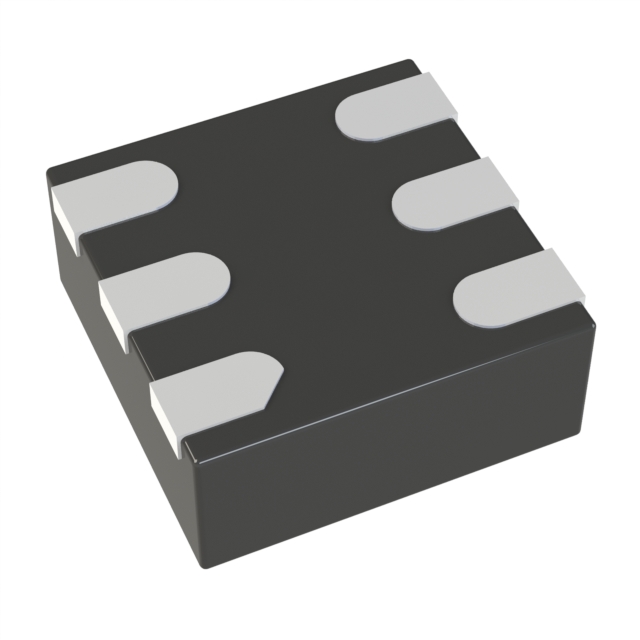

IC FLASH 2MBIT SPI/QUAD 6USON
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BY25Q20BLAIG(R)
ActiveBYTe Semiconductor
IC FLASH 2MBIT SPI/QUAD 6USON
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BY25Q20BLAIG(R) |
|---|---|
| Access Time | 6 ns |
| Clock Frequency | 85 MHz |
| Memory Format | FLASH |
| Memory Interface | SPI - Quad I/O |
| Memory Organization [custom] | 256 K |
| Memory Organization [custom] | 8 |
| Memory Size | 2 Gbit |
| Memory Type | Non-Volatile |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-XFDFN |
| Supplier Device Package | 6-USON (1.2x1.2) |
| Technology | FLASH - NOR (SLC) |
| Voltage - Supply [Max] | 2 V |
| Voltage - Supply [Min] | 1.65 V |
| Write Cycle Time - Word, Page | 3 ms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 50000 | $ 0.09 | |
Description
General part information
BY25Q20BLAIG(R)
FLASH - NOR (SLC) Memory IC 2Mbit SPI - Quad I/O 85 MHz 6 ns 6-USON (1.2x1.2)
