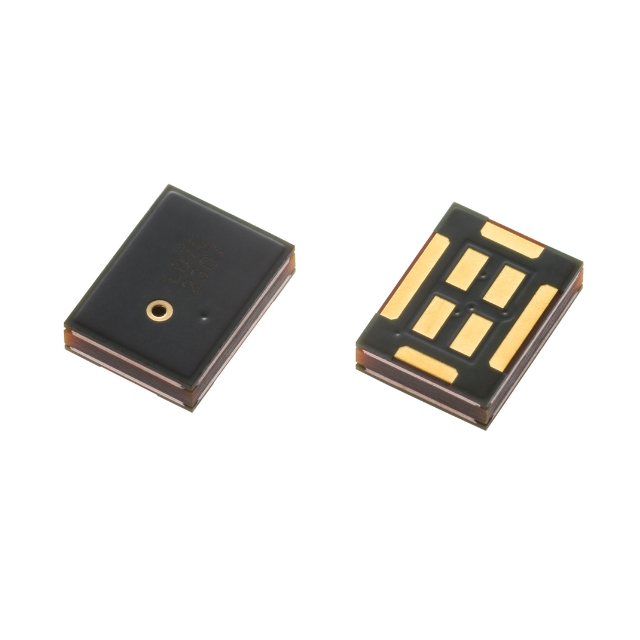

3SM222KMT1KA-P
Active3S (Solid State System)
DIGITAL MIC/TOP PORT/SEN-26DB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3SM222KMT1KA-P
Active3S (Solid State System)
DIGITAL MIC/TOP PORT/SEN-26DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3SM222KMT1KA-P |
|---|---|
| Current - Supply | 550 µA |
| Direction | Omnidirectional |
| Frequency Range [Max] | 10 kHz |
| Frequency Range [Min] | 100 Hz |
| Height (Max) [Max] | 0.043 in |
| Height (Max) [Max] | 1.1 mm |
| Output Type | PDM, Digital |
| Port Location | Top |
| S/N Ratio | 64 dB |
| Sensitivity | -26 dB |
| Shape | Rectangular |
| Size / Dimension [x] | 4 mm |
| Size / Dimension [x] | 0.157 " |
| Size / Dimension [y] | 3 mm |
| Size / Dimension [y] | 0.118 in |
| Termination | Surface Mount |
| Type | MEMS (Silicon) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.78 | |
| 5 | $ 1.70 | |||
| 10 | $ 1.61 | |||
| 50 | $ 1.30 | |||
| 100 | $ 1.10 | |||
| 250 | $ 1.07 | |||
| 500 | $ 0.90 | |||
| Digi-Reel® | 1 | $ 1.78 | ||
| 5 | $ 1.70 | |||
| 10 | $ 1.61 | |||
| 50 | $ 1.30 | |||
| 100 | $ 1.10 | |||
| 250 | $ 1.07 | |||
| 500 | $ 0.90 | |||
| Tape & Reel (TR) | 1000 | $ 0.81 | ||
| 2000 | $ 0.76 | |||
| 3000 | $ 0.74 | |||
| 5000 | $ 0.71 | |||
Description
General part information
3SM222KMT1KA-P
100 Hz ~ 10 kHz Digital, PDM Microphone MEMS (Silicon) Omnidirectional (-26dB ±1dB @ 94dB SPL) Surface Mount
