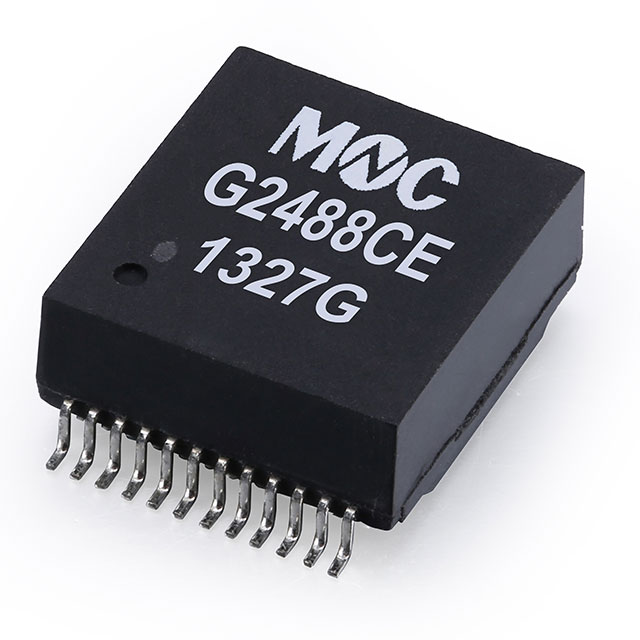

G2488CE
ActiveMentech Technology USA Inc.
SINGLE LAN XFMR 1000 BASE-T
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
G2488CE
ActiveMentech Technology USA Inc.
SINGLE LAN XFMR 1000 BASE-T
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | G2488CE |
|---|---|
| Height - Seated (Max) [Max] | 0.264 " |
| Height - Seated (Max) [Max] | 6.7 mm |
| Inductance | 350 µH |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Size / Dimension [x] | 15.8 mm |
| Size / Dimension [x] | 0.622 in |
| Size / Dimension [y] | 0.599 in |
| Size / Dimension [y] | 14.2 mm |
| Transformer Type | LAN 10/100/1000 Base-T |
| Turns Ratio - Primary:Secondary [custom] | 1CT |
| Turns Ratio - Primary:Secondary [custom] | 1CT |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 5 | $ 5.04 | |
| 10 | $ 4.03 | |||
| 100 | $ 2.52 | |||
| 400 | $ 2.02 | |||
| 1200 | $ 1.51 | |||
| 2000 | $ 1.26 | |||
| 4800 | $ 1.01 | |||
| 9600 | $ 0.76 | |||
Description
General part information
G2488CE
350µH LAN 10/100/1000 Base-T Pulse Transformer 1CT:1CT Surface Mount
