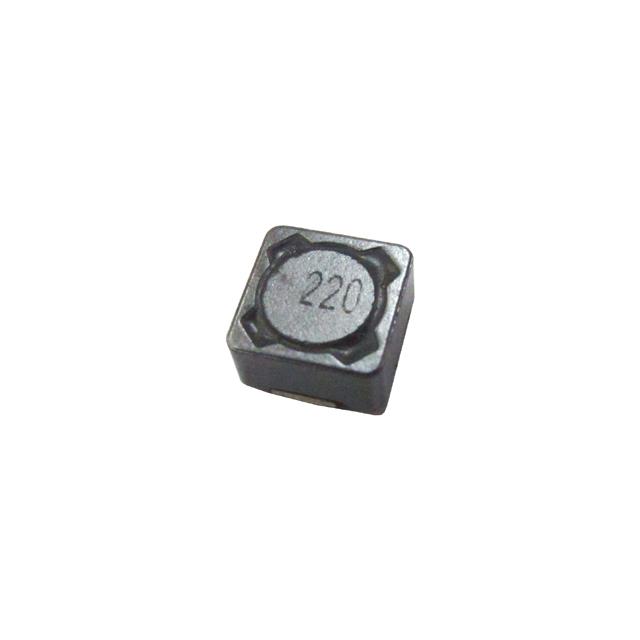

BPSC000404181R5TS1
ActivePulse Electronics
INDUCTOR POWER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BPSC000404181R5TS1
ActivePulse Electronics
INDUCTOR POWER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BPSC000404181R5TS1 |
|---|---|
| Current Rating (Amps) | 1.55 A |
| Height - Seated (Max) [Max] | 0.071 " |
| Height - Seated (Max) [Max] | 1.8 mm |
| Inductance | 1.5 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -30 ░C |
| Package / Case | 1616 (4040 Metric) |
| Shielding | Shielded |
| Size / Dimension [x] | 4 mm |
| Size / Dimension [x] | 0.157 " |
| Size / Dimension [y] | 0.157 in |
| Size / Dimension [y] | 4 mm |
| Supplier Device Package | 1616 |
| Tolerance | 30 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 5000 | $ 0.37 | |
Description
General part information
BPSC000404181R5TS1
1.5 µH Shielded Inductor 1.55 A 52mOhm Max 1616 (4040 Metric)
Documents
Technical documentation and resources
