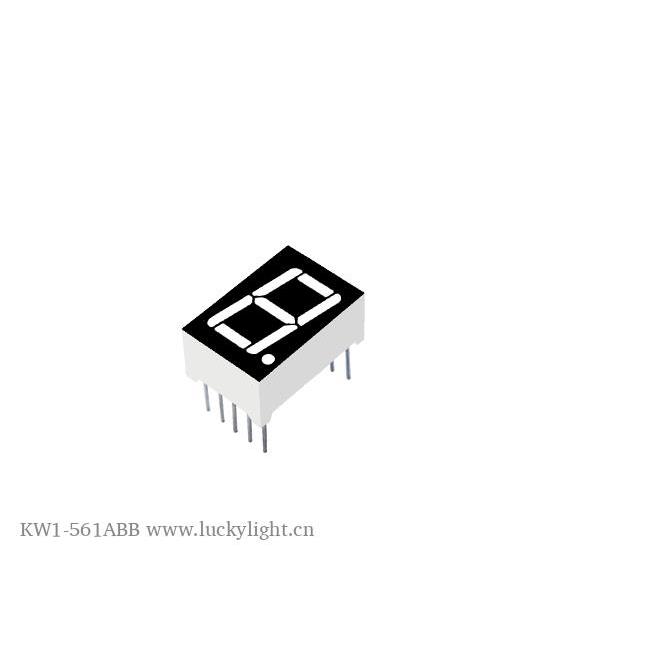

KW1-561ABB
ActiveLuckylight
0.56'' 1-DIGIT 7SEG BLU TH DISP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KW1-561ABB
ActiveLuckylight
0.56'' 1-DIGIT 7SEG BLU TH DISP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KW1-561ABB |
|---|---|
| Color | Blue |
| Common Pin | Common Anode |
| Current - Test | 10 mA |
| Digit/Alpha Size | 14.2 mm |
| Digit/Alpha Size | 0.56 in |
| Display Type | 7-Segment |
| Millicandela Rating | 25 mcd |
| Number of Characters [custom] | 1 |
| Package / Case | 0.6 in |
| Package / Case | 15.24 mm |
| Package / Case | 10-DIP |
| Power Dissipation (Max) [Max] | 35 mW |
| Size / Dimension [x] | 0.315 " |
| Size / Dimension [x] | 8 mm |
| Size / Dimension [y] | 12.6 mm |
| Size / Dimension [y] | 0.496 in |
| Size / Dimension [z] | 19 mm |
| Size / Dimension [z] | 0.748 " |
| Voltage - Forward (Vf) (Typ) | 2.9 V |
| Wavelength - Peak | 468 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 5 | $ 0.28 | |
Description
General part information
KW1-561ABB
Display Modules - LED Character and Numeric Blue 7-Segment 1 Character Common Anode 2.9V 10mA 0.748" H x 0.496" W x 0.315" D (19.00mm x 12.60mm x 8.00mm) 10-DIP (0.600", 15.24mm)
