SZA-6044Z
ObsoleteRFMD
IC AMP 802.11A 5.1-5.9GHZ 16QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SZA-6044Z
ObsoleteRFMD
IC AMP 802.11A 5.1-5.9GHZ 16QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SZA-6044Z |
|---|---|
| Current - Supply [Max] | 185 mA |
| Current - Supply [Min] | 145 mA |
| Frequency [Max] | 5.9 GHz |
| Frequency [Min] | 5.1 GHz |
| Gain [Max] | 17.9 dB |
| Gain [Min] | 14.9 dB |
| Mounting Type | Surface Mount |
| Noise Figure [Max] | 9.8 dB |
| Noise Figure [Min] | 7.8 dB |
| P1dB [Max] | 26 dBm |
| P1dB [Min] | 22.5 dBm |

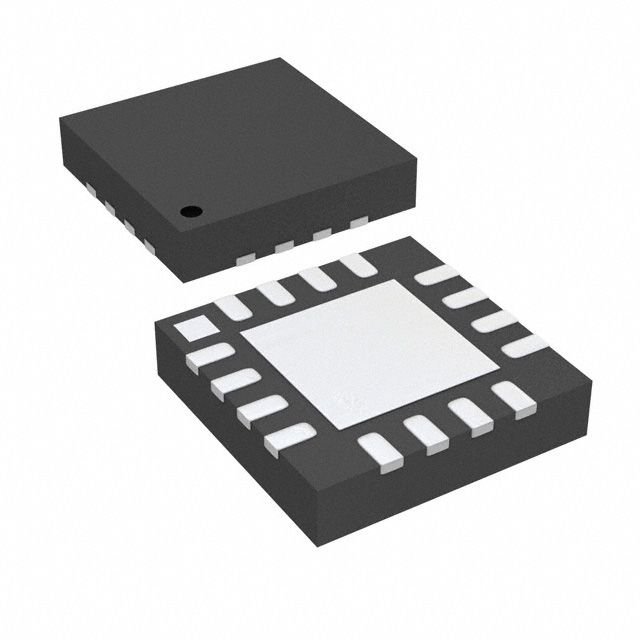

| Package / Case | 16-VFQFN Exposed Pad |
| RF Type | ISM, 802.11a/WiFi, 802.16/WiMax, WLAN |
| Supplier Device Package | 16-QFN (4x4) |
| Test Frequency | 5.9 GHz |
| Voltage - Supply [Max] | 5 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.35 | |
| 10 | $ 4.49 | |||
| 25 | $ 4.21 | |||
| 100 | $ 3.76 | |||
| 250 | $ 3.50 | |||
| 500 | $ 3.32 | |||
| 1000 | $ 3.21 | |||
Description
General part information
SZA-6044Z
RF Amplifier IC 802.11a/WiFi, 802.16/WiMax, ISM, WLAN 5.1GHz ~ 5.9GHz 16-QFN (4x4)
