12.88785
ActiveGeyer Electronic America, Inc.

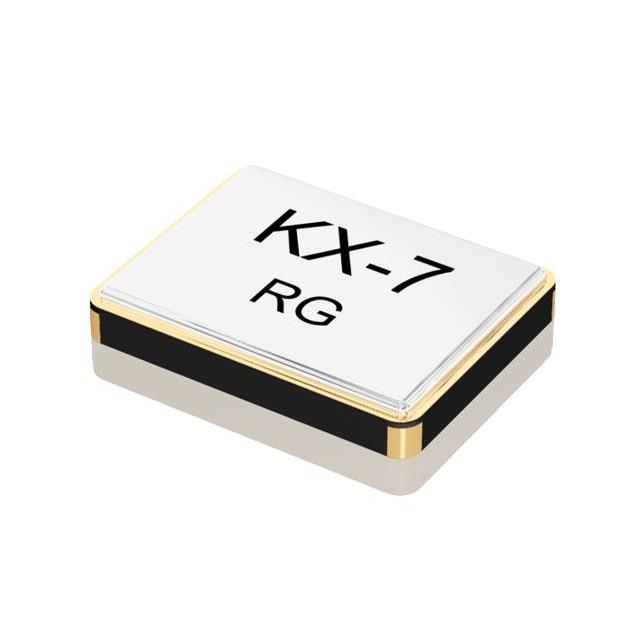

CRYSTAL, CERAMIC SMD 4 PAD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
12.88785
ActiveGeyer Electronic America, Inc.
CRYSTAL, CERAMIC SMD 4 PAD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 12.88785 |
|---|---|
| ESR (Equivalent Series Resistance) | 60 Ohms |
| Frequency | 16 MHz |
| Frequency Stability | 10 ppm |
| Frequency Tolerance | 15 ppm |
| Height - Seated (Max) [Max] | 0.7 mm |
| Height - Seated (Max) [Max] | 0.028 in |
| Load Capacitance | 9 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-SMD, Flat Lead |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.52 | |
| 10 | $ 0.43 | |||
| 50 | $ 0.39 | |||
| 100 | $ 0.34 | |||
| 500 | $ 0.33 | |||
| Digi-Reel® | 1 | $ 0.52 | ||
| 10 | $ 0.43 | |||
| 50 | $ 0.39 | |||
| 100 | $ 0.34 | |||
| 500 | $ 0.33 | |||
| Tape & Reel (TR) | 1000 | $ 0.27 | ||
| 3000 | $ 0.26 | |||
| 5000 | $ 0.25 | |||
| 10000 | $ 0.24 | |||
Description
General part information
12.88785
16 MHz ±15ppm Crystal 9pF 60 Ohms 4-SMD, Flat Lead
Documents
Technical documentation and resources
