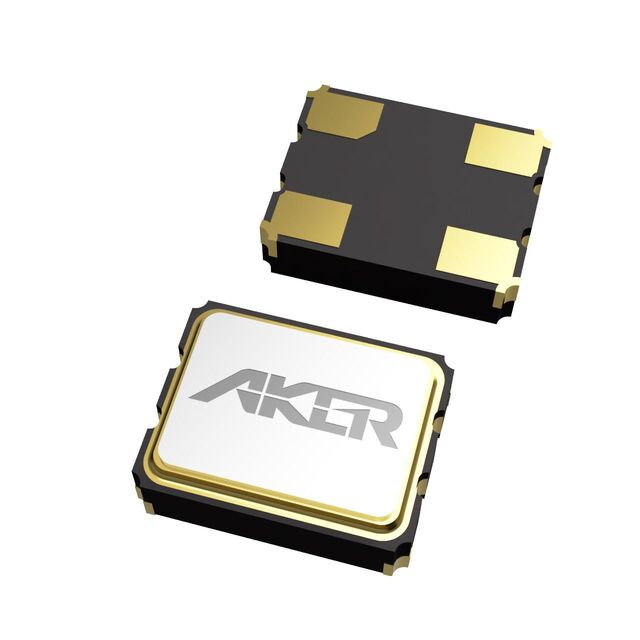

S32505T-32.768K-X-R
ActiveAker Technology Corp
XTAL OSC XO 32.7680 KHZ HCMOS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
S32505T-32.768K-X-R
ActiveAker Technology Corp
XTAL OSC XO 32.7680 KHZ HCMOS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S32505T-32.768K-X-R |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) [Max] | 36 µA |
| Frequency | 32.768 kHz |
| Frequency Stability | 50 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] | 1.2 mm |
| Height - Seated (Max) [Max] | 0.047 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | HCMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Supplier Device Package | 4-VDFN (3.2x2.5) |
| Type | XO (Standard) |
| Voltage - Supply | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 25 | $ 0.85 | |
| 100 | $ 0.60 | |||
| 200 | $ 0.57 | |||
| 1000 | $ 0.49 | |||
Description
General part information
S32505T-32.768K-X-R
32.768 kHz XO (Standard) HCMOS Oscillator 2.5V Enable/Disable 4-SMD, No Lead
