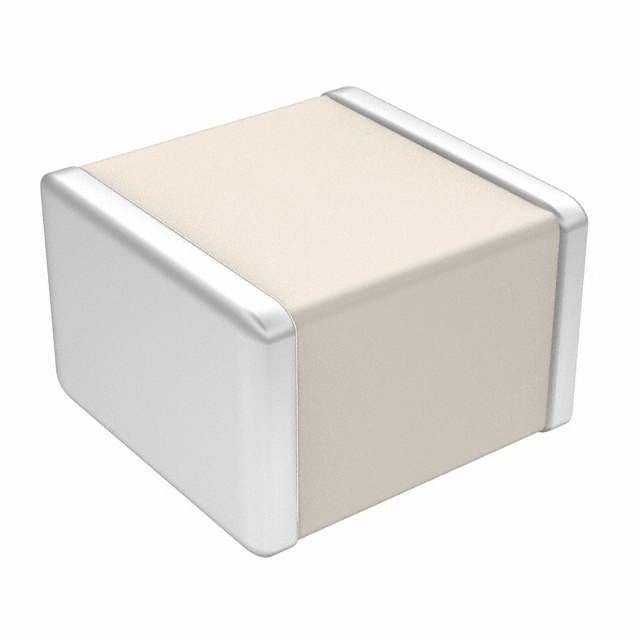

100B330KW500XT/1.5K
ActiveAmerican Technical Ceramics
CAP CER 33PF 500V P90 1111
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
100B330KW500XT/1.5K
ActiveAmerican Technical Ceramics
CAP CER 33PF 500V P90 1111
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 100B330KW500XT/1.5K |
|---|---|
| Applications | RF, High Frequency, Bypass, Microwave, Decoupling |
| Capacitance | 33 pF |
| Features | Low ESL, High Q, Low Loss |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1111 (2828 Metric) |
| Size / Dimension [x] | 2.79 mm |
| Size / Dimension [x] | 0.11 in |
| Size / Dimension [y] | 0.11 in |
| Size / Dimension [y] | 2.79 mm |
| Thickness (Max) [Max] | 0.102 " |
| Thickness (Max) [Max] | 2.59 mm |
| Tolerance | 10 % |
| Voltage - Rated | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 3.65 | |
Description
General part information
100B330KW500XT/1.5K
33 pF ±10% 500V Ceramic Capacitor P90 1111 (2828 Metric)
