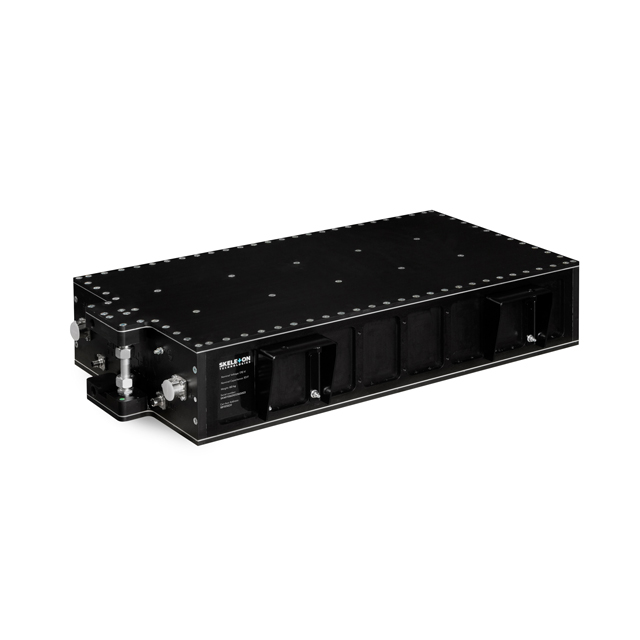

SKELMOD 170V

Obsolete

Skeleton Technologies GmbH

CAPACITOR 53F 170V CHASSIS MOUNT

Search across all available documentation for this part.

Obsolete

Skeleton Technologies GmbH

CAPACITOR 53F 170V CHASSIS MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	SKELMOD 170V

ESR (Equivalent Series Resistance)	12.7 mOhms
Height - Seated (Max) [Max] [z]	14.567 in
Height - Seated (Max) [Max] [z]	370 mm
Lifetime @ Temp.	1500 Hrs
Mounting Type	Chassis Mount
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Size / Dimension [x]	920 mm
Size / Dimension [x]	36.22 in
Size / Dimension [y]	24.803 in
Size / Dimension [y]	630 mm
Voltage - Rated	170 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

53 F (EDLC) Supercapacitor 170 V Module 12.7mOhm 1500 Hrs @ 65°C
