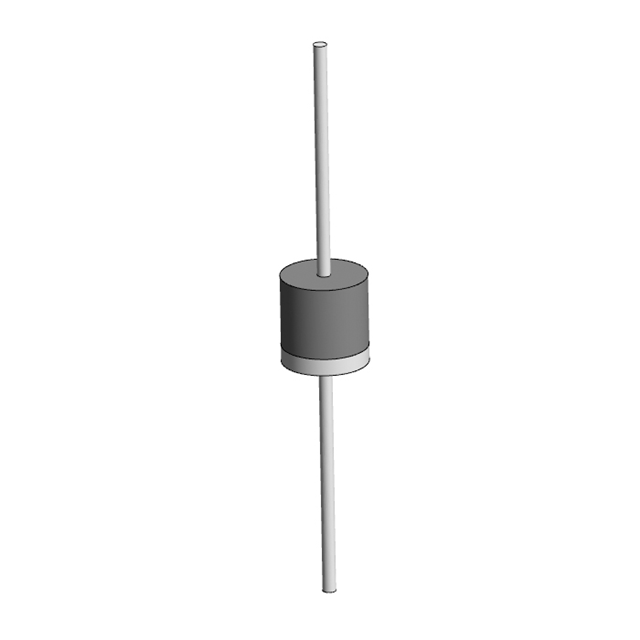

6KPE15AH
ActiveEaton - Electronics Division
TVS DIODE 15VWM 24.4VC UNI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6KPE15AH
ActiveEaton - Electronics Division
TVS DIODE 15VWM 24.4VC UNI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6KPE15AH |
|---|---|
| Applications | Telecom |
| Current - Peak Pulse (10/1000µs) | 270.5 A |
| Grade | Automotive |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 175 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Power - Peak Pulse | 6600 W |
| Power - Peak Pulse | 6.6 kW |
| Power Line Protection | False |
| Qualification | AEC-Q101 |
| Type | Zener |
| Unidirectional Channels [custom] | 1 |
| Voltage - Breakdown (Min) [Min] | 16.7 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 24.4 V |
| Voltage - Reverse Standoff (Typ) | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.79 | |
| 10 | $ 1.80 | |||
| 100 | $ 1.24 | |||
| Tape & Reel (TR) | 300 | $ 1.06 | ||
| 600 | $ 0.97 | |||
| 900 | $ 0.93 | |||
| 1500 | $ 0.88 | |||
| 2100 | $ 0.85 | |||
| 3000 | $ 0.82 | |||
| 7500 | $ 0.77 | |||
Description
General part information
6KPE15AH
24.4V Clamp 270.5A Ipp Tvs Diode Through Hole
