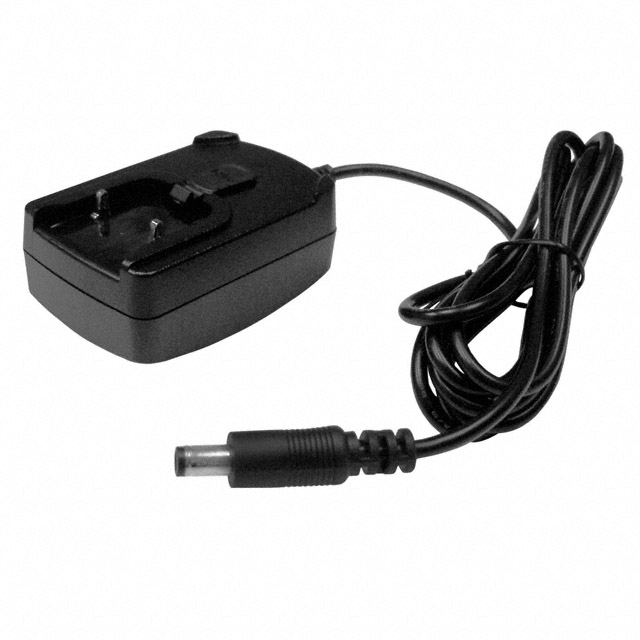

PSA05R-050
ObsoletePhihong USA
AC/DC WALL MOUNT ADAPTER 5V 5W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PSA05R-050
ObsoletePhihong USA
AC/DC WALL MOUNT ADAPTER 5V 5W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PSA05R-050 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cULus |
| Cord Length | 70.9 in |
| Cord Length | 1.8 m |
| Current - Output (Max) [Max] | 1 A |
| Efficiency | Level IV |
| Form | Wall Mount (Class II) |
| Input Connector | Multi-Blade |
| Input Type | Multi-Blade (Sold Separately) |
| No Load Power Consumption | 500 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 2.1 mm, 5.5 mm |
| Output Connector [x] | 9.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 5 W |
| Region Utilized | International |
| Size / Dimension [x] | 71.7 mm |
| Size / Dimension [x] | 2.82 " |
| Size / Dimension [y] | 1.77 " |
| Size / Dimension [y] | 45 mm |
| Size / Dimension [z] | 1.22 in |
| Size / Dimension [z] | 31 mm |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 5 V |
| Weight | 0.265 lb |
| Weight | 120.2 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PSA05R-050
5V 5 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
