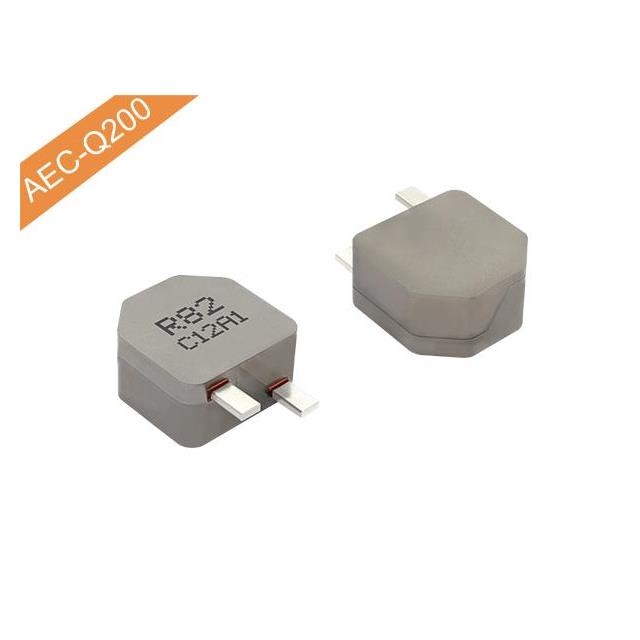

VPAB3822-1R5M
ActiveCODACA
FIXED IND 1.5UH 125A 0.245MOHM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VPAB3822-1R5M
ActiveCODACA
FIXED IND 1.5UH 125A 0.245MOHM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VPAB3822-1R5M |
|---|---|
| Current - Saturation (Isat) | 238 A |
| Current Rating (Amps) | 125 A |
| DC Resistance (DCR) [Max] | 0.245 mOhm |
| Features | Molding Power Choke, High Current Through Hole |
| Height - Seated (Max) [Max] [z] | 38.25 mm |
| Height - Seated (Max) [Max] [z] | 1.506 in |
| Inductance | 1.5 µH |
| Material - Core | Alloy Powder |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Vertical, 2 PC Pin |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension [x] | 1.506 in |
| Size / Dimension [x] | 38.25 mm |
| Size / Dimension [y] | 0.866 in |
| Size / Dimension [y] | 22 mm |
| Supplier Device Package | Vertical, 2 PC Pin |
| Tolerance | 20 % |
| Type | Molded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 27.70 | |
| 10 | $ 21.46 | |||
| 25 | $ 19.37 | |||
| 40 | $ 18.37 | |||
| 80 | $ 17.19 | |||
Description
General part information
VPAB3822-1R5M
1.5 µH Shielded Molded Inductor 125 A 0.245mOhm Max Vertical, 2 PC Pin High Current Through Hole, Molding Power Choke
