EM 218 LP
ActiveBopla Enclosures
BOX PLASTIC GRAY 5.91"L X 5.91"W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EM 218 LP
ActiveBopla Enclosures
BOX PLASTIC GRAY 5.91"L X 5.91"W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EM 218 LP |
|---|---|
| Area (L x W) | 34.8 in˛ |
| Area (L x W) | 225 cm² |
| Color | Gray |
| Container Type | Box |
| Design | Cover Included |
| Features | Card Guides |
| Height [z] | 57 mm |
| Height [z] | 2.244 " |
| Material | Plastic, Polycarbonate |
| Material Flammability Rating | UL94 V-2 |
| Ratings | IP65, NEMA 12 |
| Size / Dimension [x] | 150 mm |
| Size / Dimension [x] | 5.906 in |
| Size / Dimension [y] | 5.906 " |
| Size / Dimension [y] | 150 mm |
| Thickness | 3 mm |
| Thickness | 0.118 in |
| Weight | 0.646 lb |
| Weight | 293.02 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 50.84 | |
| 5 | $ 43.44 | |||
| 10 | $ 40.60 | |||
| 25 | $ 37.12 | |||
| 50 | $ 36.49 | |||
Description
General part information
EM 218 LP

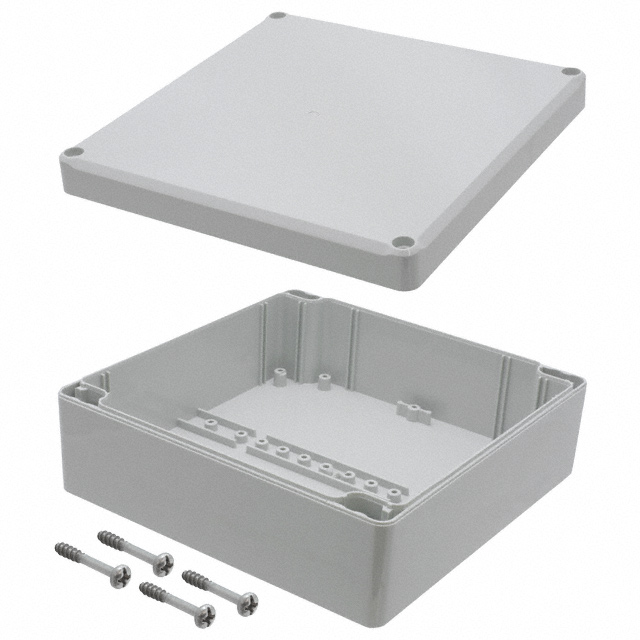

Box Plastic, Polycarbonate Gray Cover Included 5.906" L x 5.906" W (150.00mm x 150.00mm) X 2.244" (57.00mm)
