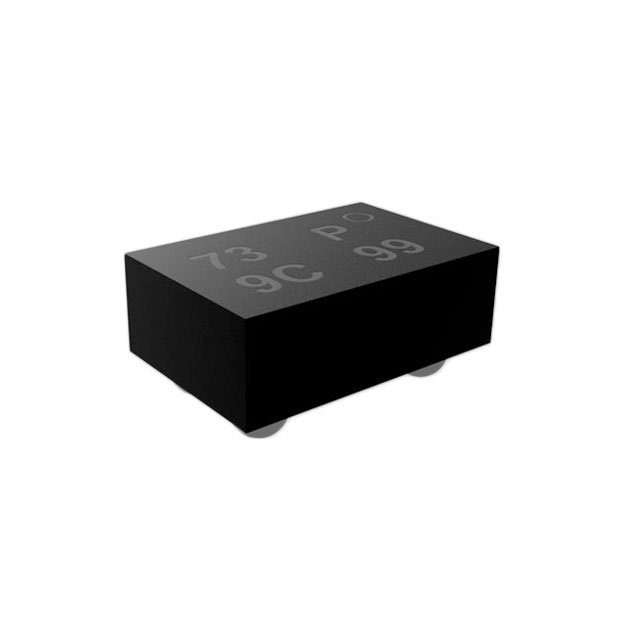

AK09973D
ActiveAsahi Kasei Microdevices Corporation
3D MAGNETIC SENSOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AK09973D
ActiveAsahi Kasei Microdevices Corporation
3D MAGNETIC SENSOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AK09973D |
|---|---|
| Axis [x] | X |
| Axis [y] | Y |
| Axis [z] | Z |
| Current - Supply (Max) [Max] | 1.4 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Output Type | I2C |
| Package / Case | WLCSP, 5-BGA |
| Sensing Range [Max] | 36 mT |
| Sensing Range [Min] | -36 mT |
| Supplier Device Package | 5-WLCSP |
| Technology | Hall Effect |
| Voltage - Supply [Max] | 1.95 V |
| Voltage - Supply [Min] | 1.65 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.05 | |
| 10 | $ 2.29 | |||
| 25 | $ 2.04 | |||
| 50 | $ 1.93 | |||
| 100 | $ 1.88 | |||
| 500 | $ 1.58 | |||
| 1000 | $ 1.48 | |||
| Digi-Reel® | 1 | $ 3.05 | ||
| 10 | $ 2.29 | |||
| 25 | $ 2.04 | |||
| 50 | $ 1.93 | |||
| 100 | $ 1.88 | |||
| 500 | $ 1.58 | |||
| 1000 | $ 1.48 | |||
| Tape & Reel (TR) | 8000 | $ 1.35 | ||
Description
General part information
AK09973D
Hall Effect Sensor X, Y, Z Axis 5-WLCSP
