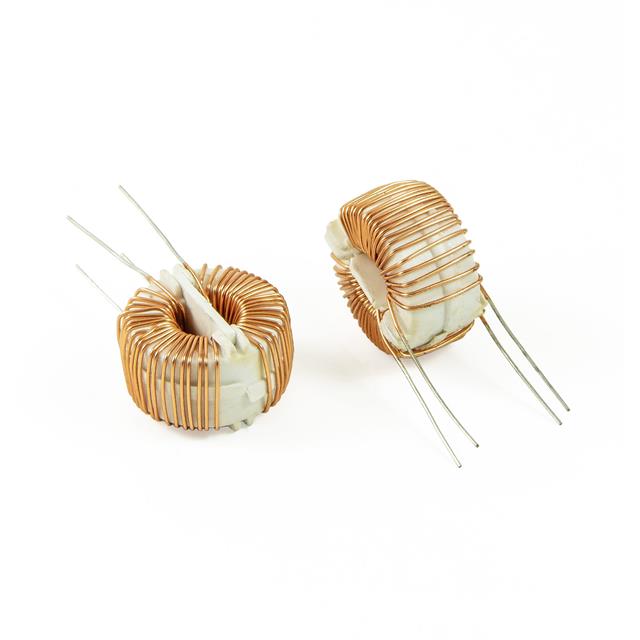

VCM7111-RC
ActiveAllied Components International
CMC 850UH 3A 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VCM7111-RC
ActiveAllied Components International
CMC 850UH 3A 2LN TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VCM7111-RC |
|---|---|
| Current Rating (Max) [Max] | 3 A |
| DC Resistance (DCR) (Max) | 0.03 mOhm |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | No Base, Vertical, 4 PC Pin |
| Size / Dimension [diameter] | 0.6 in |
| Size / Dimension [diameter] | 15.24 mm |
| Size / Dimension [x] | 0.45 in |
| Size / Dimension [x] | 0.45 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 6.75 | |
| 5 | $ 6.25 | |||
| 10 | $ 5.75 | |||
| 15 | $ 5.25 | |||
Description
General part information
VCM7111-RC
850 µH @ 1 kHz 2 Line Common Mode Choke Through Hole 3A DCR 0.03mOhm
