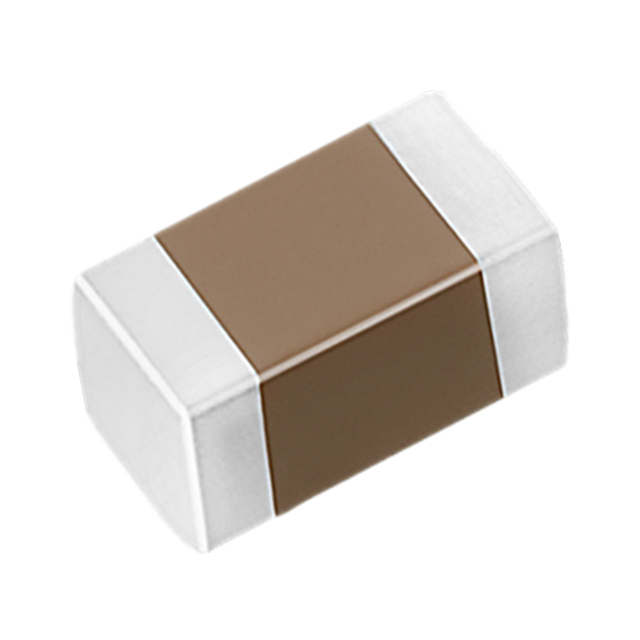

1812B332K202KA
ActiveAillen
CAP.,SMD,1812,X7R,3.3NF,10%,2000
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1812B332K202KA
ActiveAillen
CAP.,SMD,1812,X7R,3.3NF,10%,2000
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1812B332K202KA |
|---|---|
| Applications | General Purpose |
| Capacitance | 3300 pF |
| Features | High Voltage |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1812 (4532 Metric) |
| Size / Dimension [x] | 0.177 in |
| Size / Dimension [x] | 4.5 mm |
| Size / Dimension [y] | 3.2 mm |
| Size / Dimension [y] | 0.126 " |
| Temperature Coefficient | X7R |
| Thickness (Max) [Max] | 0.087 in |
| Thickness (Max) [Max] | 2.2 mm |
| Tolerance | 10 % |
| Voltage - Rated | 2 kV |
| Voltage - Rated | 2000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 0.50 | |
Description
General part information
1812B332K202KA
3300 pF ±10% 2000V (2kV) Ceramic Capacitor X7R 1812 (4532 Metric)
