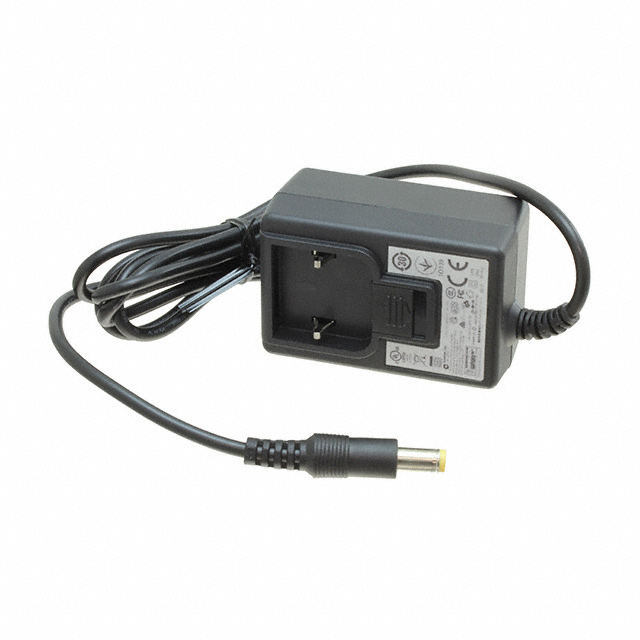

WR95E500CCP-F(R6B)
ActiveGlobTek, Inc.
AC/DC WALL MOUNT ADAPTER 12V 6W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WR95E500CCP-F(R6B)
ActiveGlobTek, Inc.
AC/DC WALL MOUNT ADAPTER 12V 6W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WR95E500CCP-F(R6B) |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, UKRSepro, EAC, CB |
| Cord Length | 1.5 m |
| Cord Length | 59 in |
| Current - Output (Max) [Max] | 500 mA |
| Efficiency | Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | BS 1363 |
| Input Type | Fixed Blade |
| No Load Power Consumption [Max] | 75 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.1 mm |
| Output Connector [z] | 11 mm |
| Polarization | Positive Center |
| Power (Watts) | 6 W |
| Region Utilized | United Kingdom |
| Size / Dimension [x] | 2.62 in |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 2.02 in |
| Standard Number | 60950-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.19 | |
| 5 | $ 8.82 | |||
| 10 | $ 8.67 | |||
| 25 | $ 8.47 | |||
| 50 | $ 8.32 | |||
| 100 | $ 8.18 | |||
| 250 | $ 7.99 | |||
| 500 | $ 7.85 | |||
Description
General part information
WR95E500CCP-F(R6B)
12V 6 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
