ALC6416
ActiveAlliance

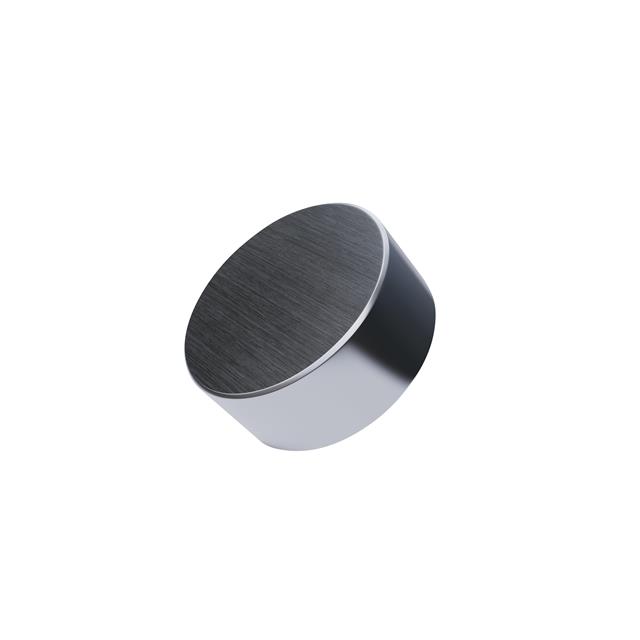

MAGNET 0.253"D X 0.065"THICK CYL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ALC6416 |
|---|---|
| Finish | Nickel (Ni) |
| Gauss Strength [Max] | 14800 G |
| Gauss Strength [Min] | 14200 G |
| Grade | N52 |
| Magnetization | Axial |
| Material | Neodymium Iron Boron (NdFeB) |
| Operating Temperature | 80 °C |
| Shape | Cylindrical |
| Size [diameter] | 0.253 " |
| Size [diameter] | 6.43 mm |
| Size [z] | 1.64 mm |
| Size [z] | 0.065 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 2.00 | |
| 20 | $ 1.60 | |||
| 50 | $ 1.50 | |||
Description
General part information
ALC6416
Magnet Neodymium Iron Boron (NdFeB) N52 0.253" Dia x 0.065" H (6.43mm x 1.64mm)
