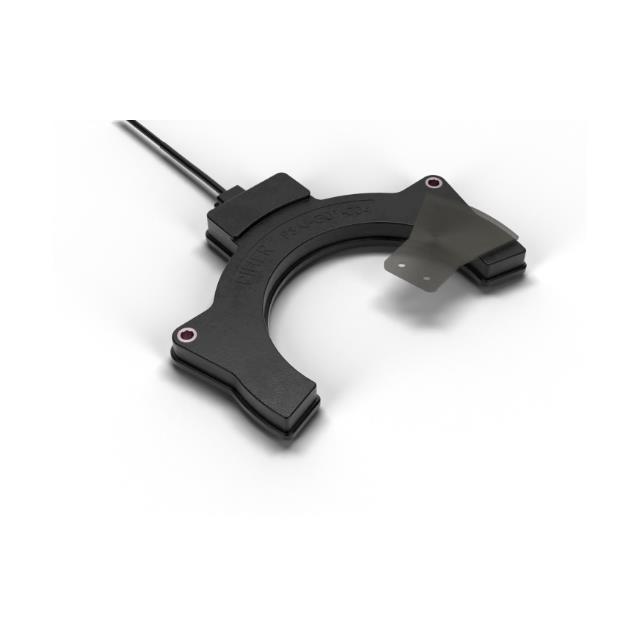

PSAI-A-100-S-RE
ActiveAmphenol Piher Sensing Systems
INDUCTIVE ARC POSITION SENSOR EL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PSAI-A-100-S-RE
ActiveAmphenol Piher Sensing Systems
INDUCTIVE ARC POSITION SENSOR EL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PSAI-A-100-S-RE |
|---|---|
| Actuator Type | External Magnet, Not Included |
| For Measuring | Rotary Position |
| Linear Range [Max] [x] | 2 mm |
| Linear Range [Max] [x] | 0.08 in |
| Linear Range [Min] [x] | 0 mm |
| Linear Range [Min] [x] | 0 in |
| Linearity | 1 % |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Analog Voltage |
| Output Signal | Clockwise Increase |
| Package / Case | Box with Wire Leads |
| Rotation Angle - Electrical, Mechanical [Max] | 100 ° |
| Rotation Angle - Electrical, Mechanical [Min] | 0 ° |
| Technology | Inductive |
| Termination Style | Wire Leads |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 277.58 | |
| 5 | $ 234.17 | |||
| 10 | $ 217.65 | |||
| 25 | $ 197.59 | |||
| 50 | $ 193.75 | |||
Description
General part information
PSAI-A-100-S-RE
Inductive Sensor Rotary Position External Magnet, Not Included Wire Leads
