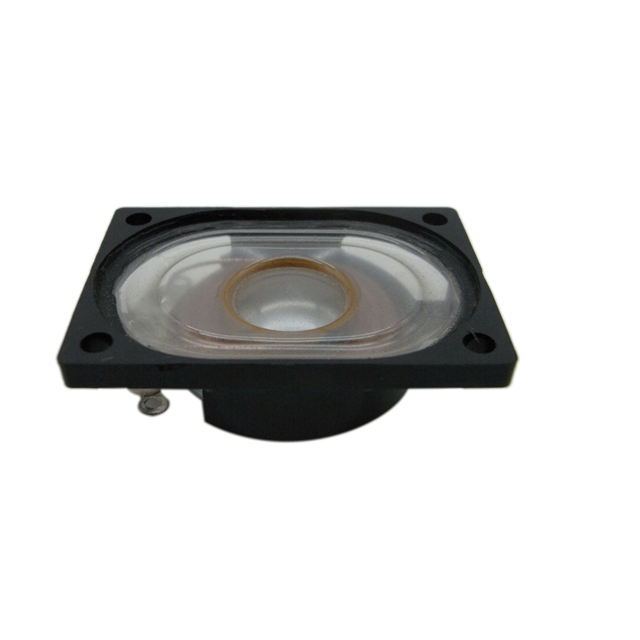

WSP-4012Y
ActiveSoberton Inc.
SPEAKER 8OHM 1W TOP PORT 78DB
Deep-Dive with AI
Search across all available documentation for this part.
WSP-4012Y
ActiveSoberton Inc.
SPEAKER 8OHM 1W TOP PORT 78DB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WSP-4012Y |
|---|---|
| Distortion Rating [Max] | 7 % |
| Efficiency - dBA | 78 dBA |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 650 Hz |
| Frequency Range [Max] | 12 kHz |
| Frequency Range [Min] | 650 Hz |
| Height - Seated (Max) [Max] [z] | 11.8 mm |
| Height - Seated (Max) [Max] [z] | 0.465 in |
| Impedance | 8 Ohms |
| Material - Magnet | Nd-Fe-B |
| Port Location | Top |
| Power - Max [Max] | 2 W |
| Power - Rated | 1 W |
| Shape | Rectangular |
| Size / Dimension [x] | 1.583 in |
| Size / Dimension [x] | 40.2 mm |
| Size / Dimension [y] | 28.2 mm |
| Size / Dimension [y] | 1.11 in |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.71 | |
| 10 | $ 3.02 | |||
| 25 | $ 2.79 | |||
| 40 | $ 2.67 | |||
| 80 | $ 2.56 | |||
| 100 | $ 2.46 | |||
| 230 | $ 2.33 | |||
| 300 | $ 2.24 | |||
| 440 | $ 2.20 | |||
| 500 | $ 2.14 | |||
| 945 | $ 2.09 | |||
| 1000 | $ 2.09 | |||
Description
General part information
WSP-4012Y
8 Ohms General Purpose Speaker 1 W 650 Hz ~ 12 kHz Top Rectangular
Documents
Technical documentation and resources
No documents available
