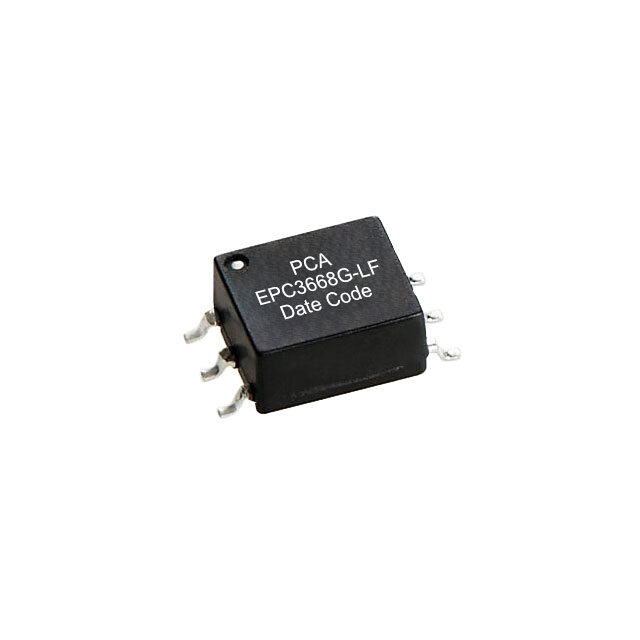

EPC3668G-LF
ActivePCA Electronics, Inc.
XFMR P-P DC/DC CONV 1MH SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EPC3668G-LF
ActivePCA Electronics, Inc.
XFMR P-P DC/DC CONV 1MH SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EPC3668G-LF |
|---|---|
| Applications | Push-Pull Converters |
| Chipset Manufacturer | Texas Instruments |
| Footprint [x] | 7.01 mm |
| Footprint [x] | 0.276 " |
| Footprint [y] | 11 mm |
| Footprint [y] | 0.433 in |
| Frequency [Max] | 620 kHz |
| Frequency [Min] | 300 kHz |
| Height - Seated (Max) [Max] [z] | 0.165 in |
| Height - Seated (Max) [Max] [z] | 4.19 mm |
| Inductance @ Frequency | 1000 µH |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Type | For DC/DC Converters |
| Voltage - Auxiliary | 5 V |
| Voltage - Isolation | 2500 Vrms |
| Voltage - Primary | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 1.90 | |
| 5 | $ 1.79 | |||
| 10 | $ 1.71 | |||
| 25 | $ 1.56 | |||
| 50 | $ 1.46 | |||
| 100 | $ 1.41 | |||
| 250 | $ 1.33 | |||
| 600 | $ 1.18 | |||
Description
General part information
EPC3668G-LF
Push-Pull Converters For For DC/DC Converters SMPS Transformer 2500Vrms Isolation 300 ~ 620kHz Surface Mount
