TLH-5903/T
ActiveTADIRAN BATTERIES
CELL SIZE AA NOMINAL VOLTAGE (V) 3.6 CAPACITY (AH) 2 DISCHARGE CURRENT (MA) 1 TEMP -55 TO +125
Deep-Dive with AI
Search across all available documentation for this part.
TLH-5903/T
ActiveTADIRAN BATTERIES
CELL SIZE AA NOMINAL VOLTAGE (V) 3.6 CAPACITY (AH) 2 DISCHARGE CURRENT (MA) 1 TEMP -55 TO +125
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TLH-5903/T |
|---|---|
| Battery Cell Size | AA |
| Battery Chemistry | Lithium Thionyl Chloride |
| Capacity | 2 Ah |
| Shelf Life | 120 Months |
| Shelf Life Start | Date of Manufacture |
| Shipping Info | Due to restrictions, only ground shipment is allowed. |
| Storage/Refrigeration Temperature [Max] | 86 °F |
| Termination Style | Solder Tab |
| Voltage - Rated | 3.6 VDC |
| Weight | 18 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
TLH-5903/T

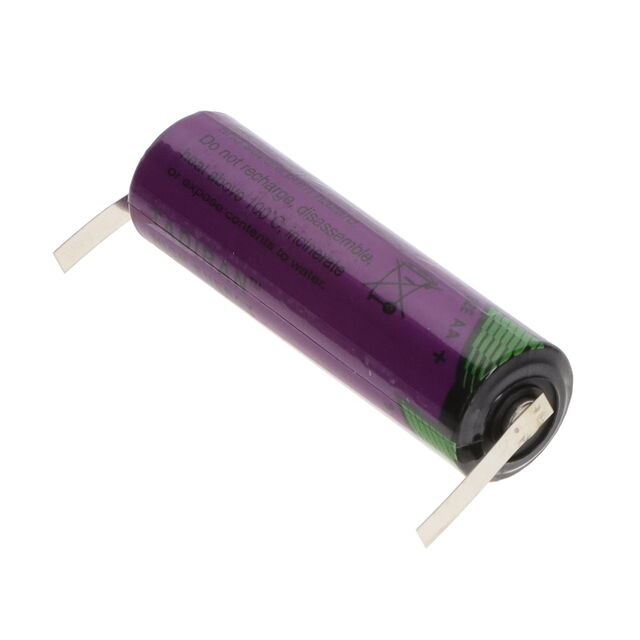

AA Lithium Thionyl Chloride 3.6 V Battery Non-Rechargeable (Primary)
