BU-191640071
ActiveMueller Electric Co

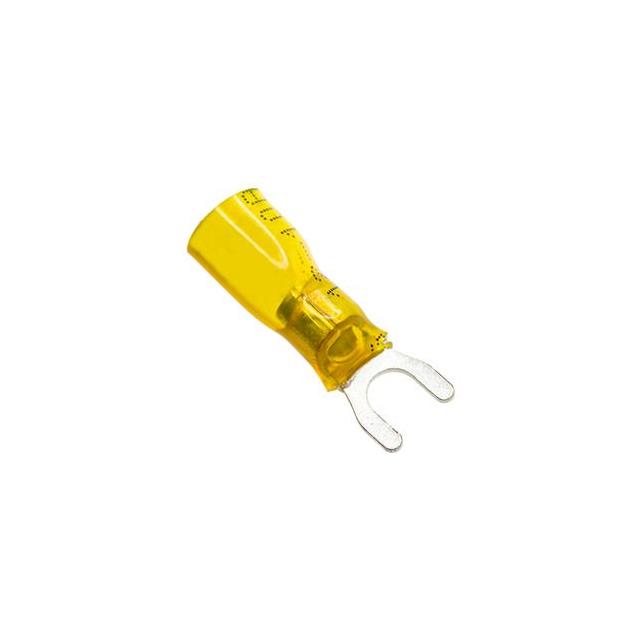

FORK / SPADE TONGUE TERMINAL, 12AWG TO 10AWG, #10, HEAT SHRINK NYAX
Deep-Dive with AI
Search across all available documentation for this part.
BU-191640071
ActiveMueller Electric Co
FORK / SPADE TONGUE TERMINAL, 12AWG TO 10AWG, #10, HEAT SHRINK NYAX
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BU-191640071 |
|---|---|
| Color | Yellow |
| Contact Finish | Electro-Tin |
| Contact Material | Copper Alloy |
| Insulation | Insulated |
| Length - Overall | 29.46 mm |
| Length - Overall | 1.16 in |
| Material - Insulation | Nyax |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 10 Stud |
| Terminal Type | Standard |
| Termination | Crimp |
| Tongue Inside Opening [x] | 0.203 in |
| Tongue Inside Opening [x] | 5.16 mm |
| Width - Outer Edges [y] | 9.4 mm |
| Width - Outer Edges [y] | 0.37 in |
| Wire Gauge [Max] | 12 AWG |
| Wire Gauge [Min] | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.46 | |
Description
General part information
BU-191640071
Yellow 10 Stud Spade Terminal Connector Crimp 10-12 AWG
