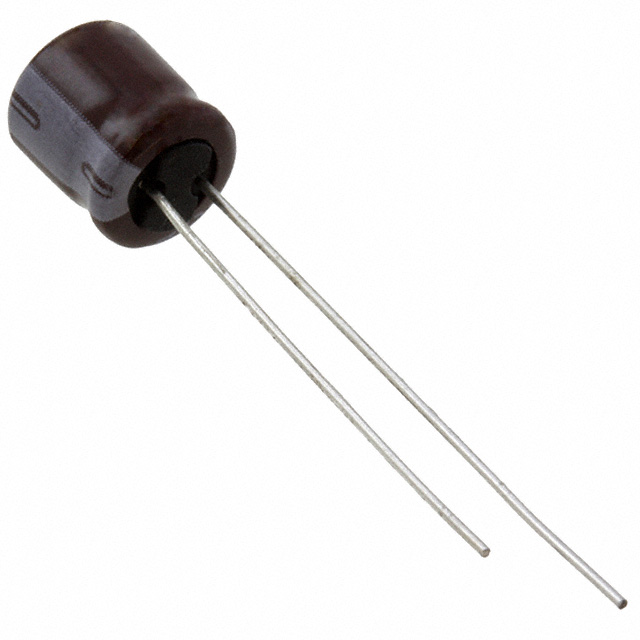

EFL-160ELL151MH07D
ObsoleteChemi-Con
CAP ALUM 150UF 20% 16V RADIAL TH
Deep-Dive with AI
Search across all available documentation for this part.
EFL-160ELL151MH07D
ObsoleteChemi-Con
CAP ALUM 150UF 20% 16V RADIAL TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EFL-160ELL151MH07D |
|---|---|
| Applications | General Purpose |
| Capacitance | 150 µF |
| Height - Seated (Max) [Max] [z] | 8 mm |
| Height - Seated (Max) [Max] [z] | 0.315 in |
| Impedance | 900 mOhms |
| Lead Spacing | 3.5 mm |
| Lead Spacing | 0.138 in |
| Lifetime @ Temp. | 3000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial, Can |
| Polarization | Polar |
| Ripple Current @ Low Frequency | 64.8 mA |
| Size / Dimension [diameter] | 0.315 " |
| Size / Dimension [diameter] | 8 mm |
| Tolerance | 20 % |
| Voltage - Rated | 16 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
EFL-160ELL151MH07D
150 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C
Documents
Technical documentation and resources
No documents available
