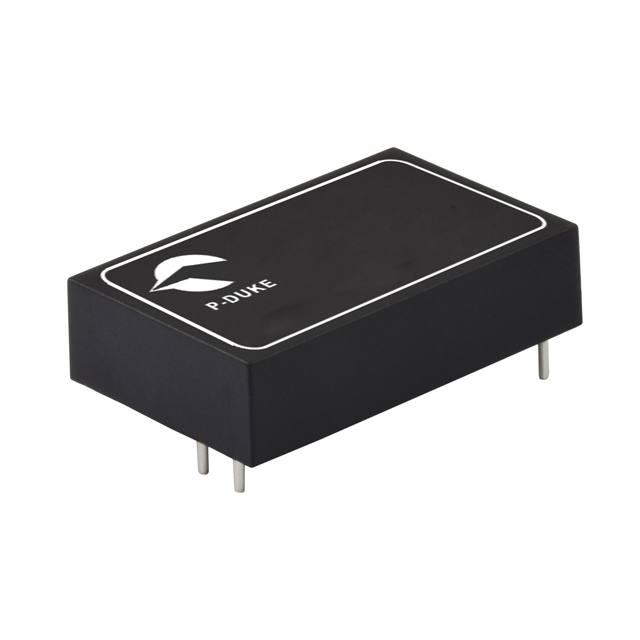

MPM15-12S05
ActiveP-DUKE Technology
DC DC CONVERTER 5V 15W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MPM15-12S05
ActiveP-DUKE Technology
DC DC CONVERTER 5V 15W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MPM15-12S05 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CE, cURus, CB, FCC |
| Current - Output (Max) [Max] | 3 A |
| Efficiency | 89 % |
| Features | Adjustable Output |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 105 C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 5 Leads |
| Package / Case | 6-DIP Module |
| Power (Watts) | 15 W |
| Size / Dimension [x] | 40.6 mm |
| Size / Dimension [x] | 1.6 " |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 10.2 mm |
| Size / Dimension [z] | 0.4 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 18 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 5000 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 61.38 | |
| 10 | $ 53.95 | |||
| 25 | $ 51.24 | |||
| 50 | $ 49.29 | |||
| 100 | $ 47.41 | |||
Description
General part information
MPM15-12S05
Isolated Module DC DC Converter 1 Output 5V 3A 9V - 18V Input
