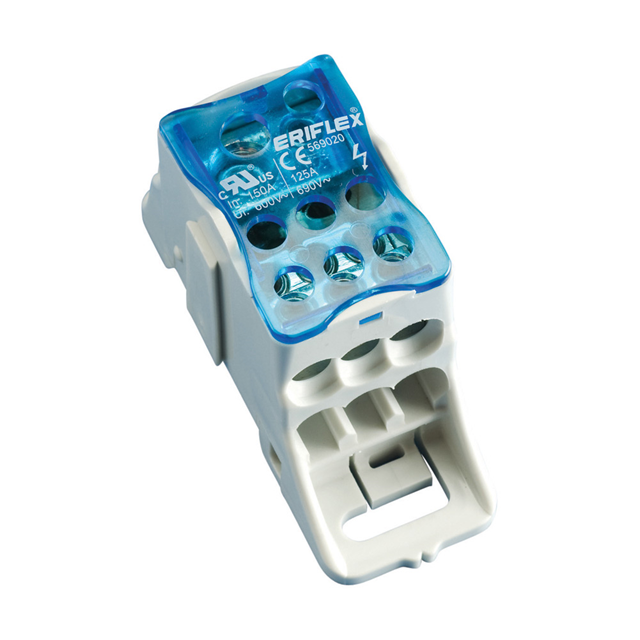

569020
ActiveERIFLEX
1 POLE DIST. BLOCK 150A COPPER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
569020
ActiveERIFLEX
1 POLE DIST. BLOCK 150A COPPER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 569020 |
|---|---|
| Current Rating (Amps) | 150 A |
| Line Side Connection Type | Screw Connection |
| Line Side Connections Per Pole | 3 |
| Line Side Wire/Stud Size | #8CU |
| Line Side Wire/Stud Size | 1 aught AWG |
| Load Side Connection Type | Screw Connection |
| Load Side Connections Per Pole | 7 |
| Load Side Wire/Stud Size [Max] | #14 |
| Load Side Wire/Stud Size [Min] | #4 |
| Number of Poles | 1 |
| Type | Power Distribution Block |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
569020
1 Pole Power Distribution Block 150 A 600 V
Documents
Technical documentation and resources
