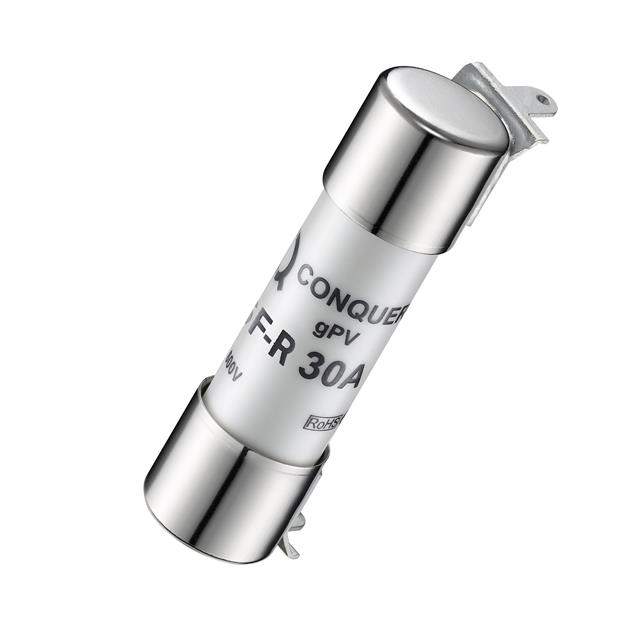

K6F-R 30A 600V (PF)
ActiveConquer
POWER FUSE, 10*38MM, 30A, 600V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
K6F-R 30A 600V (PF)
ActiveConquer
POWER FUSE, 10*38MM, 30A, 600V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | K6F-R 30A 600V (PF) |
|---|---|
| Applications | Solar (Photovoltaic) |
| Approval Agency | cULus, TUV, CQC |
| Breaking Capacity @ Rated Voltage | 150 kA, 50 kA |
| Class | gPV |
| Current Rating (Amps) | 30 A |
| DC Cold Resistance | 0.0028 Ohms |
| Fuse Type | Cartridge |
| Melting I²t | 1740 |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial Bend Cylinder |
| Response Time | Fast Blow |
| Size / Dimension [diameter] | 0.406 in |
| Size / Dimension [diameter] | 10.3 mm |
| Size / Dimension [x] | 38 mm |
| Size / Dimension [x] | 1.496 " |
| Voltage Rating - AC | 600 VAC |
| Voltage Rating - DC | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 25.88 | |
| 5 | $ 21.56 | |||
| 10 | $ 19.92 | |||
| 40 | $ 16.99 | |||
| 80 | $ 15.69 | |||
| 230 | $ 13.87 | |||
| 440 | $ 12.86 | |||
Description
General part information
K6F-R 30A 600V (PF)
30A 600 VAC 600 VDC Fuse Cartridge Through Hole
