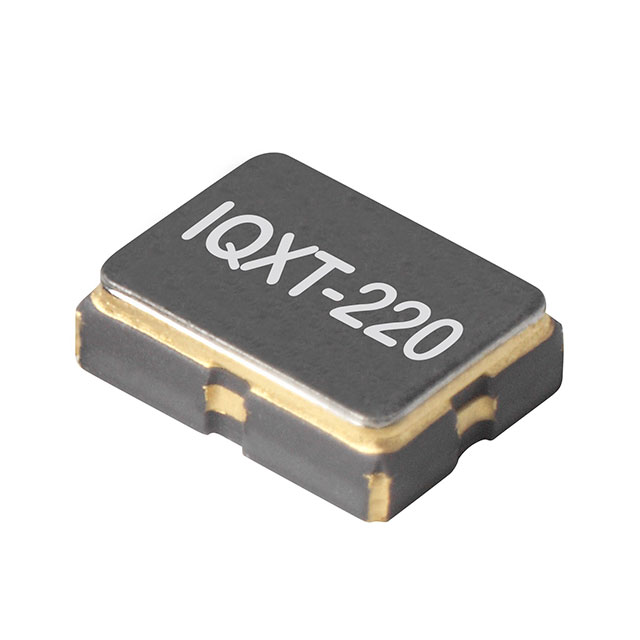

LFTCXO075792
ActiveIQD FREQUENCY PRODUCTS
TCXO, 10MHZ, 3.2MM X 2.5MM, CLIPPED SINE
Deep-Dive with AI
Search across all available documentation for this part.
LFTCXO075792
ActiveIQD FREQUENCY PRODUCTS
TCXO, 10MHZ, 3.2MM X 2.5MM, CLIPPED SINE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LFTCXO075792 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) [Max] | 5 mA |
| Frequency | 10 MHz |
| Frequency Stability | 280 ppb |
| Height - Seated (Max) [Max] | 0.039 " |
| Height - Seated (Max) [Max] | 1 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Clipped Sine Wave |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Type | TCXO |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 13.14 | |
| 10 | $ 11.42 | |||
| 50 | $ 10.35 | |||
| 100 | $ 9.93 | |||
| 500 | $ 9.06 | |||
| Digi-Reel® | 1 | $ 13.14 | ||
| 10 | $ 11.42 | |||
| 50 | $ 10.35 | |||
| 100 | $ 9.93 | |||
| 500 | $ 9.06 | |||
| Tape & Reel (TR) | 3000 | $ 9.06 | ||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 22.19 | |
| 1 | $ 22.19 | |||
| 10 | $ 20.70 | |||
| 10 | $ 20.70 | |||
| 25 | $ 19.40 | |||
| 25 | $ 19.40 | |||
| 50 | $ 18.14 | |||
| 50 | $ 18.14 | |||
| 100 | $ 16.85 | |||
| 100 | $ 16.85 | |||
| 250 | $ 15.97 | |||
| 250 | $ 15.97 | |||
Description
General part information
LFTCXO075792
10 MHz TCXO Clipped Sine Wave Oscillator 3.3V 4-SMD, No Lead
