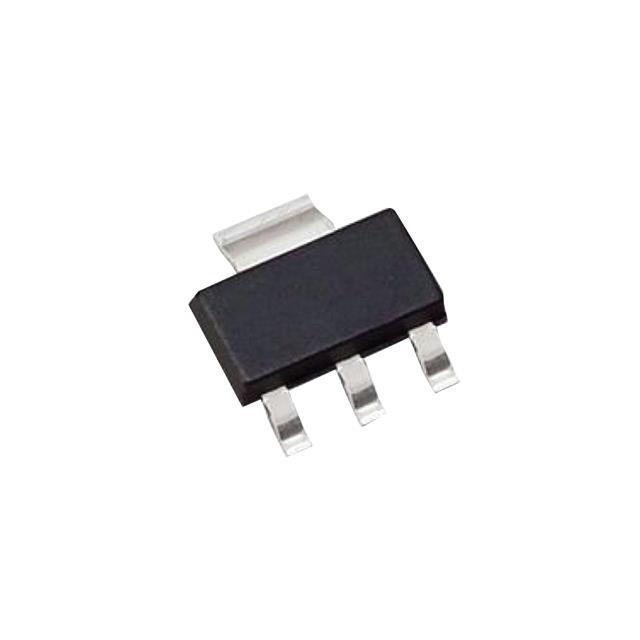

SSFL6912
ActiveGood-Ark Semiconductor
MOSFET, N-CH, SINGLE, 5A, 60V, S
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SSFL6912
ActiveGood-Ark Semiconductor
MOSFET, N-CH, SINGLE, 5A, 60V, S
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SSFL6912 |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 5 A |
| Drain to Source Voltage (Vdss) | 60 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10 V, 4.5 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 8 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 540 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | TO-261AA, TO-261-4 |
| Rds On (Max) @ Id, Vgs | 75 mOhm |
| Supplier Device Package | SOT-223 |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) @ Id | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.54 | |
| 10 | $ 0.33 | |||
| 25 | $ 0.28 | |||
| 100 | $ 0.21 | |||
| 250 | $ 0.18 | |||
| 500 | $ 0.16 | |||
| 1000 | $ 0.14 | |||
| Digi-Reel® | 1 | $ 0.54 | ||
| 10 | $ 0.33 | |||
| 25 | $ 0.28 | |||
| 100 | $ 0.21 | |||
| 250 | $ 0.18 | |||
| 500 | $ 0.16 | |||
| 1000 | $ 0.14 | |||
| Tape & Reel (TR) | 3000 | $ 0.12 | ||
| 6000 | $ 0.11 | |||
| 9000 | $ 0.11 | |||
| 15000 | $ 0.10 | |||
| 21000 | $ 0.10 | |||
| 30000 | $ 0.10 | |||
| 75000 | $ 0.09 | |||
Description
General part information
SSFL6912
N-Channel 60 V 5A (Ta) 1.79W (Ta) Surface Mount SOT-223
