TPB4056A20-ES1R
Active3PEAK
LINEAR BATTERY CHARGER 1 CELL 8-
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TPB4056A20-ES1R
Active3PEAK
LINEAR BATTERY CHARGER 1 CELL 8-
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TPB4056A20-ES1R |
|---|---|
| Battery Chemistry | Lithium Ion/Polymer |
| Battery Pack Voltage | 4.2 V |
| Charge Current - Max [Max] | 1 A |
| Current - Charging | Constant - Programmable |
| Fault Protection | Over Voltage, Over Current, Over Temperature |
| Mounting Type | Surface Mount |
| Number of Cells | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0.154 in |
| Package / Case | 8-SOIC |
| Package / Case | 3.9 mm |
| Programmable Features | Current, Voltage |
| Supplier Device Package | 8-ESOP |
| Voltage - Supply (Max) [Max] | 26.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.63 | |
| 10 | $ 0.54 | |||
| 25 | $ 0.51 | |||
| 100 | $ 0.40 | |||
| 250 | $ 0.38 | |||
| 500 | $ 0.32 | |||
| 1000 | $ 0.25 | |||
| Digi-Reel® | 1 | $ 0.63 | ||
| 10 | $ 0.54 | |||
| 25 | $ 0.51 | |||
| 100 | $ 0.40 | |||
| 250 | $ 0.38 | |||
| 500 | $ 0.32 | |||
| 1000 | $ 0.25 | |||
| Tape & Reel (TR) | 4000 | $ 0.20 | ||
| 12000 | $ 0.19 | |||
Description
General part information
TPB4056A20-ES1R

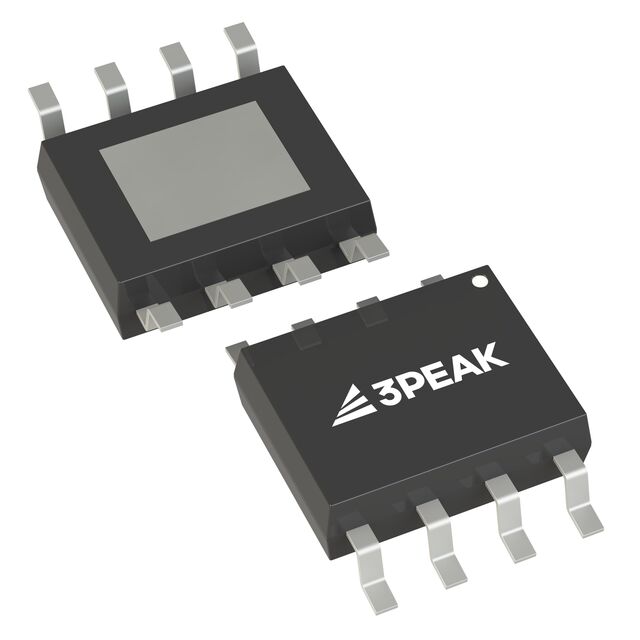

Charger IC Lithium Ion/Polymer 8-ESOP
Documents
Technical documentation and resources
