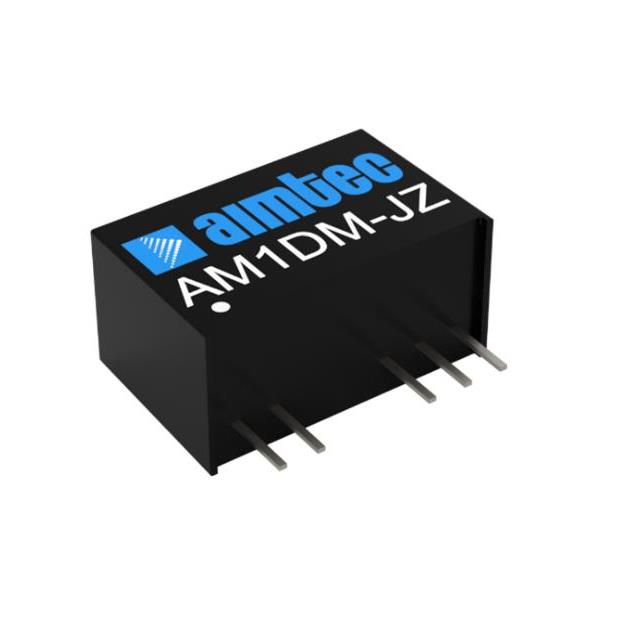

AM1DM-2409SH60JZ
Activeaimtec
1W 9V DC/DC CONVERTER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AM1DM-2409SH60JZ
Activeaimtec
1W 9V DC/DC CONVERTER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AM1DM-2409SH60JZ |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CE |
| Efficiency | 76 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 105 C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 7-DIP Module, 6 Leads |
| Size / Dimension [x] | 0.77 in |
| Size / Dimension [x] | 19.7 mm |
| Size / Dimension [y] | 0.39 " |
| Size / Dimension [y] | 9.8 mm |
| Size / Dimension [z] | 12.5 mm |
| Size / Dimension [z] | 0.49 in |
| Standard Number | 62368-1 |
| Supplier Device Package | 7-SIP |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 26.4 V |
| Voltage - Input (Min) [Min] | 21.6 V |
| Voltage - Isolation | 5000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 15.70 | |
| 5 | $ 15.39 | |||
| 10 | $ 10.54 | |||
| 20 | $ 10.22 | |||
| 40 | $ 9.91 | |||
| 80 | $ 8.92 | |||
| 160 | $ 8.83 | |||
| 500 | $ 8.48 | |||
| 1000 | $ 7.63 | |||
Description
General part information
AM1DM-2409SH60JZ
Isolated Module DC DC Converter 1 Output -9 ~ 9V 111mA 21.6V - 26.4V Input
