MMF405860
ActiveMicro-Measurements (Division of Vishay Precision Group)

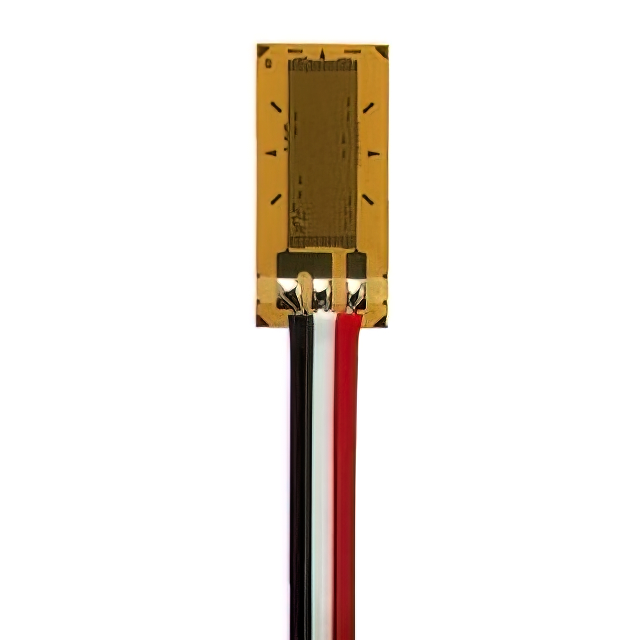

C4A-13-235SL-350-33P - STRAIN GA
Deep-Dive with AI
Search across all available documentation for this part.
MMF405860
ActiveMicro-Measurements (Division of Vishay Precision Group)
C4A-13-235SL-350-33P - STRAIN GA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MMF405860 |
|---|---|
| Length - Active [x] | 5.97 mm |
| Length - Active [x] | 0.235 in |
| Length - Overall [x] | 0.41 in |
| Length - Overall [x] | 10.4 mm |
| Length - Overall Pattern [x] | 8.7 mm |
| Length - Overall Pattern [x] | 0.343 in |
| Operating Temperature [Max] | 80 °C |
| Operating Temperature [Max] | 180 °F |
| Operating Temperature [Min] | -60 °F |
| Operating Temperature [Min] | -51 °C |
| Pattern Type | Linear |
| Resistance | 350 Ohms |
| Resistance Tolerance | 0.3 % |
| Strain Range [Max] | 3 % |
| Strain Range [Min] | -3 % |
| Width - Active | 2.54 mm |
| Width - Active | 0.1 in |
| Width - Overall [y] | 4.9 mm |
| Width - Overall [y] | 0.19 in |
| Width - Overall Pattern [x] | 3.3 mm |
| Width - Overall Pattern [x] | 0.13 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 156.48 | |
Description
General part information
MMF405860
Linear Strain Gauge ±3% 0.235" (5.97mm) 0.100" (2.54mm)
Documents
Technical documentation and resources
No documents available
