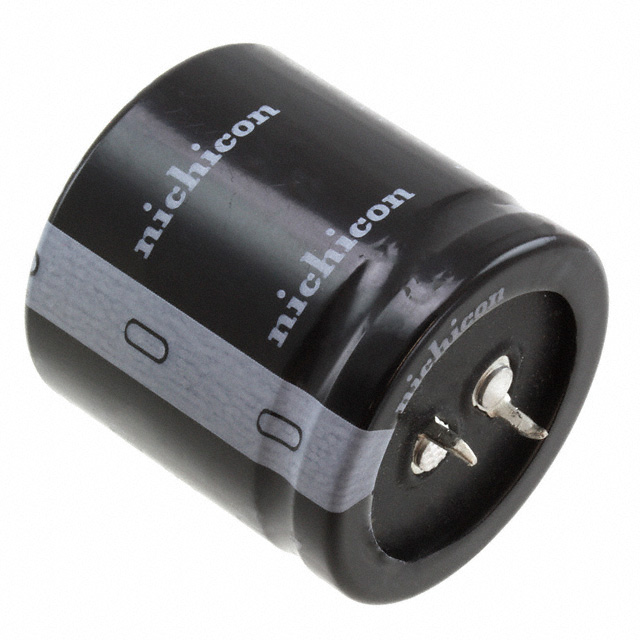

LLS2V561MELC
ActiveNICHICON
CAPACITOR,560UF,350VDC,20-% TOL,20+% TOL
Deep-Dive with AI
Search across all available documentation for this part.
LLS2V561MELC
ActiveNICHICON
CAPACITOR,560UF,350VDC,20-% TOL,20+% TOL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LLS2V561MELC |
|---|---|
| Applications | General Purpose |
| Capacitance | 560 µF |
| Height - Seated (Max) [Max] [z] | 37 mm |
| Height - Seated (Max) [Max] [z] | 1.457 in |
| Lead Spacing | 0.394 in |
| Lead Spacing | 10 mm |
| Lifetime @ Temp. | 3000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | Radial, Can - Snap-In |
| Polarization | Polar |
| Ripple Current @ High Frequency | 3.9325 A |
| Ripple Current @ Low Frequency | 2.75 A |
| Size / Dimension [diameter] | 1.378 in |
| Size / Dimension [diameter] | 35 mm |
| Tolerance | 20 % |
| Voltage - Rated | 350 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
LLS2V561MELC
560 µF 350 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C
