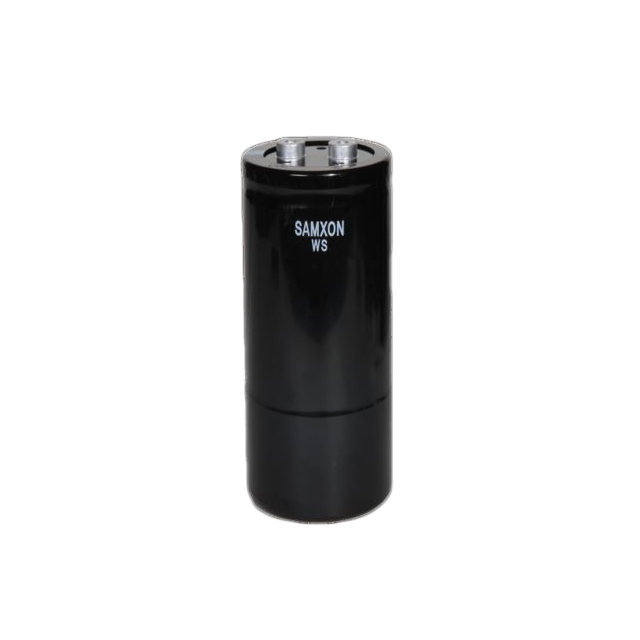

EWX688M2GU1R
ActiveSAMXON
CAP ALUM 6800UF 20% 400V SCREW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EWX688M2GU1R
ActiveSAMXON
CAP ALUM 6800UF 20% 400V SCREW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EWX688M2GU1R |
|---|---|
| Applications | General Purpose |
| Capacitance | 6800 µF |
| ESR (Equivalent Series Resistance) | 16 mOhm |
| Height - Seated (Max) [Max] [z] | 5.906 in |
| Height - Seated (Max) [Max] [z] | 150 mm |
| Lead Spacing | 31.75 mm |
| Lead Spacing | 1.25 in |
| Lifetime @ Temp. | 5000 Hrs |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | Radial, Can - Screw Terminals |
| Polarization | Polar |
| Ripple Current @ High Frequency | 21.84 A |
| Ripple Current @ Low Frequency | 18.2 A |
| Size / Dimension | 76.2 mm |
| Size / Dimension [diameter] | 3 " |
| Tolerance | 20 % |
| Voltage - Rated | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 47.00 | |
Description
General part information
EWX688M2GU1R
6800 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 16mOhm @ 120Hz 5000 Hrs @ 85°C
