LCCA30538-FT2
ActiveL-com
SMA FBH TO BNC F USING LC085TB,
Deep-Dive with AI
Search across all available documentation for this part.
LCCA30538-FT2
ActiveL-com
SMA FBH TO BNC F USING LC085TB,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30538-FT2 |
|---|---|
| 1st Connector | BNC Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | SMA Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | LC085TB |
| Connector Impedance | 50 Ohms |
| Frequency - Max [Max] | 1 GHz |
| Length | 24 " |
| Length | 609.6 mm |
| Overall Impedance | 50 Ohms |
| Style | BNC to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 110.51 | |
Description
General part information
LCCA30538-FT2

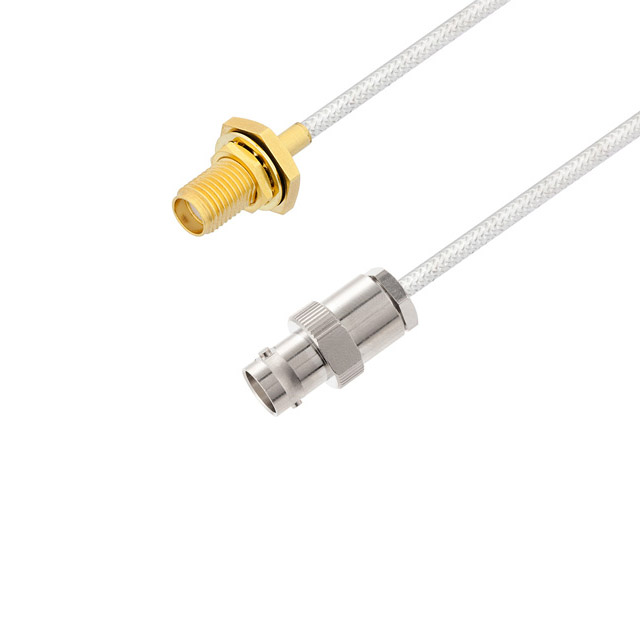

Cable Assembly Coaxial BNC to SMA LC085TB 24.00" (609.60mm)
Documents
Technical documentation and resources
No documents available
