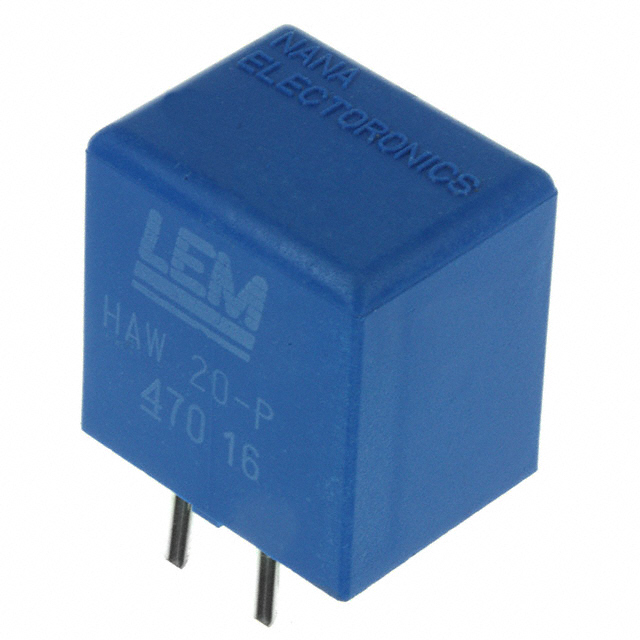

HAW 20-P
ObsoleteLEM USA Inc.
SENSOR CURRENT HALL 20A AC/DC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HAW 20-P
ObsoleteLEM USA Inc.
SENSOR CURRENT HALL 20A AC/DC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HAW 20-P |
|---|---|
| Accuracy | 1 % |
| Current - Sensing | 20 A |
| Current - Supply (Max) [Max] | 18 mA |
| For Measuring | AC/DC |
| Frequency [Max] | 50 kHz |
| Frequency [Min] | DC |
| Linearity | 1 % |
| Mounting Type | Through Hole |
| Number of Channels | 1 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -10 °C |
| Output | Voltage, Ratiometric |
| Package / Case | 8-DIP Module |
| Polarization | Bidirectional |
| Sensor Type | Hall Effect, Open Loop |
| Voltage - Supply | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
HAW 20-P
Current Sensor 20A 1 Channel Hall Effect, Open Loop Bidirectional 8-DIP Module
