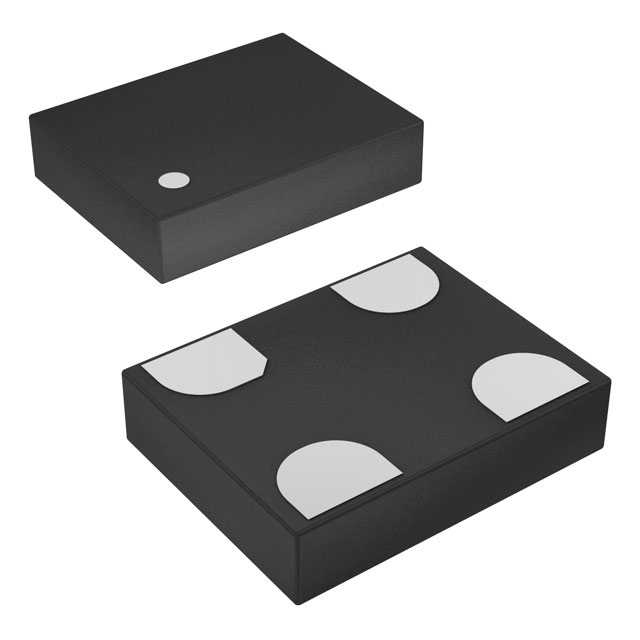

TC-26.000MBE-T
ObsoleteTXC CORPORATION
MEMS OSC XO 26.0000MHZ CMOS SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TC-26.000MBE-T
ObsoleteTXC CORPORATION
MEMS OSC XO 26.0000MHZ CMOS SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TC-26.000MBE-T |
|---|---|
| Base Resonator | MEMS |
| Current - Supply (Max) [Max] | 25 mA |
| Frequency | 26 MHz |
| Frequency Stability | 50 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] [z] | 0.8 mm |
| Height - Seated (Max) [Max] [z] | 0.031 " |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | CMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TC-26.000MBE-T
26 MHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
