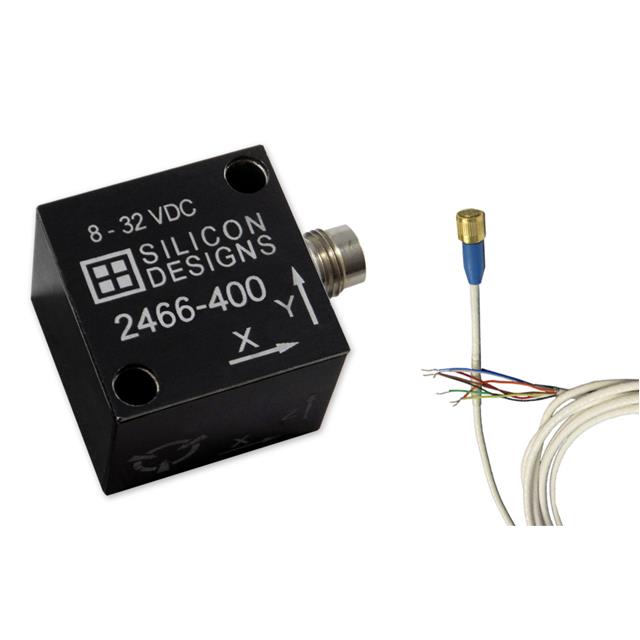

2466-400
ActiveSilicon Designs
3-AXIS 400G DC ACCEL CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
2466-400
ActiveSilicon Designs
3-AXIS 400G DC ACCEL CONNECTOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2466-400 |
|---|---|
| Acceleration Range [Max] | 400 g |
| Acceleration Range [Min] | -400 g |
| Axis [x] | X |
| Axis [y] | Y |
| Axis [z] | Z |
| Bandwidth [Max] | 4.2 kHz |
| Bandwidth [Min] | 0 Hz |
| Mounting Type | Screw Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Output Type | Analog Voltage |
| Package / Case | Module |
| Sensitivity (mV/g) | 10 mV/g |
| Supplier Device Package | Module |
| Type | Analog |
| Voltage - Supply [Max] | 32 VDC |
| Voltage - Supply [Min] | 8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1875.00 | |
| 25 | $ 1820.00 | |||
| 50 | $ 1765.00 | |||
| 100 | $ 1620.00 | |||
| 500 | $ 1582.50 | |||
| 1000 | $ 1545.00 | |||
Description
General part information
2466-400
Accelerometer X, Y, Z Axis ±400g 0Hz ~ 4.2kHz Module
Documents
Technical documentation and resources
No documents available
