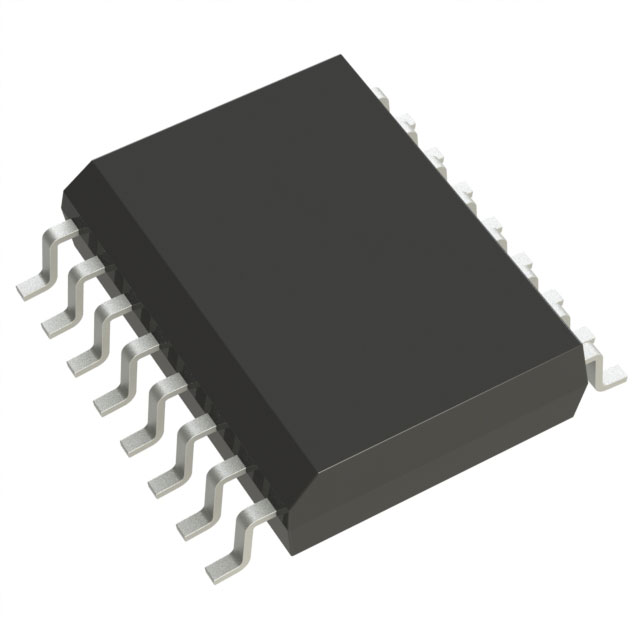

ACS732KMATR-65AB-T
ActiveAllegro MicroSystems
CURRENT SENSOR CURRENT SENSOR AC/DC CURRENT 5V AUTOMOTIVE AEC-Q100 16-PIN SOIC W T/R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ACS732KMATR-65AB-T
ActiveAllegro MicroSystems
CURRENT SENSOR CURRENT SENSOR AC/DC CURRENT 5V AUTOMOTIVE AEC-Q100 16-PIN SOIC W T/R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ACS732KMATR-65AB-T |
|---|---|
| Accuracy | 2.5 % |
| Current - Sensing | 65 A |
| Current - Supply (Max) [Max] | 35 mA |
| For Measuring | AC/DC |
| Frequency | 100 kHz |
| Grade | Automotive |
| Linearity | 0.5 % |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Voltage, Ratiometric |
| Package / Case | 16-SOIC |
| Package / Case [x] | 0.295 in |
| Package / Case [y] | 7.5 mm |
| Polarization | Bidirectional |
| Qualification | AEC-Q100 |
| Response Time | 0.3 µs |
| Sensitivity | 30.77 mV/A |
| Sensor Type | Hall Effect |
| Supplier Device Package | 16-SOIC |
| Voltage - Supply [Max] | 5.25 V |
| Voltage - Supply [Min] | 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.62 | |
| 5 | $ 4.74 | |||
| 10 | $ 4.40 | |||
| 25 | $ 4.00 | |||
| 50 | $ 3.71 | |||
| 100 | $ 3.45 | |||
| 500 | $ 2.91 | |||
| Digi-Reel® | 1 | $ 5.62 | ||
| 5 | $ 4.74 | |||
| 10 | $ 4.40 | |||
| 25 | $ 4.00 | |||
| 50 | $ 3.71 | |||
| 100 | $ 3.45 | |||
| 500 | $ 2.91 | |||
| Tape & Reel (TR) | 1000 | $ 2.44 | ||
Description
General part information
ACS732KMATR-65AB-T
Current Sensor 65A 1 Channel Hall Effect Bidirectional 16-SOIC (0.295", 7.50mm Width)
