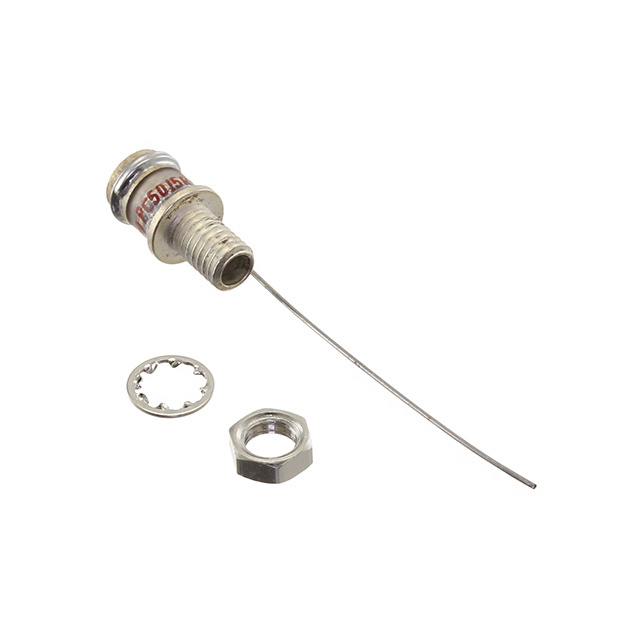

GEP14000
ObsoleteSprague-Goodman
CAP TRIMMER 1-14PF 750V TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GEP14000
ObsoleteSprague-Goodman
CAP TRIMMER 1-14PF 750V TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GEP14000 |
|---|---|
| Adjustment Type | Top |
| Capacitance Range [Max] | 14 pF |
| Capacitance Range [Min] | 1 pF |
| Features | General Purpose |
| Height - Seated (Max) [Max] [z] | 9.53 mm |
| Height - Seated (Max) [Max] [z] | 0.375 in |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Q @ Freq | 20 MHz, 500 |
| Size / Dimension [diameter] | 0.312 in |
| Size / Dimension [diameter] | 7.92 mm |
| Voltage - Rated | 750 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
GEP14000
1 ~ 14pF Trimmer Capacitor 750 V Top Through Hole
