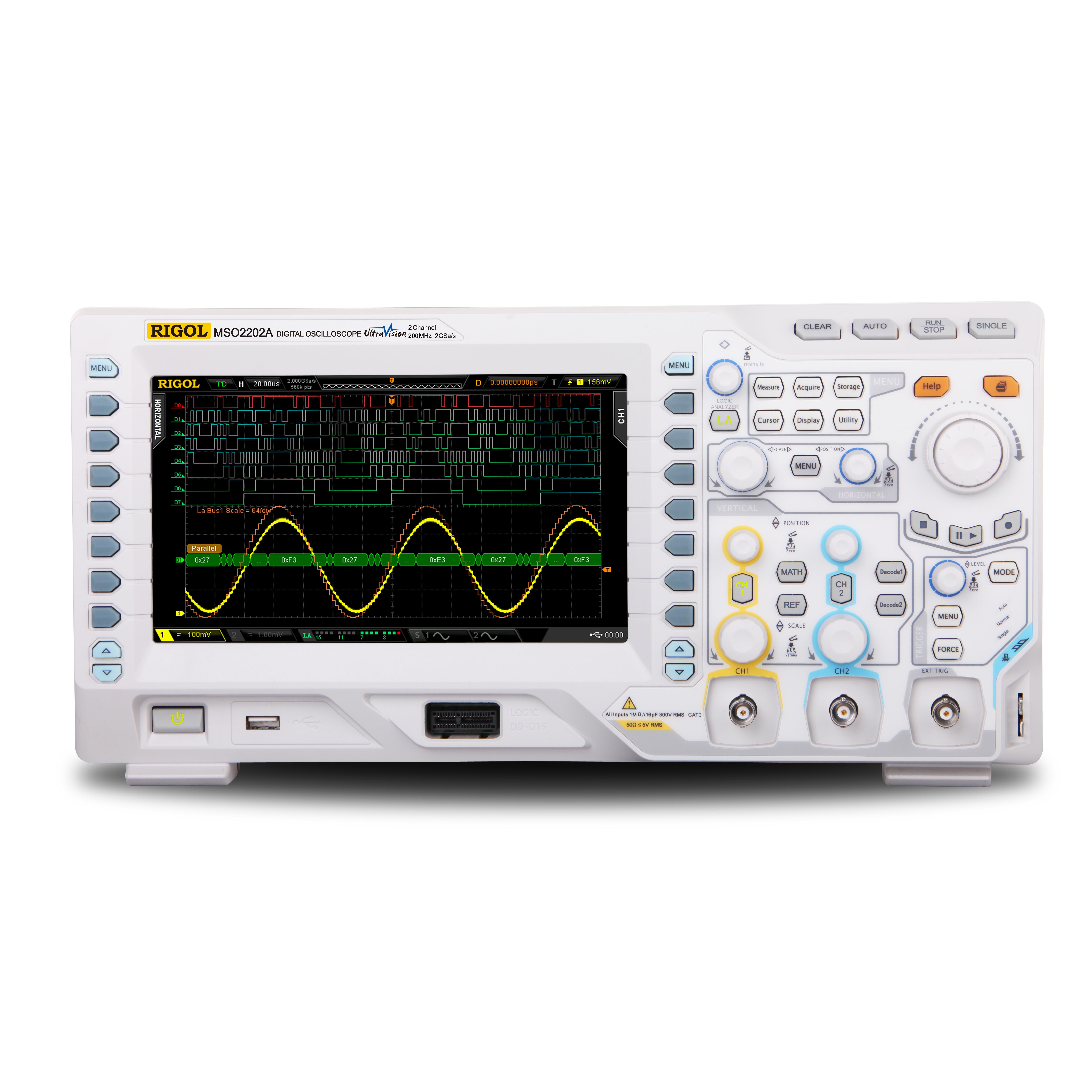

MSO2202A
ActiveRIGOL Technologies, Inc
200 MHZ, 2 CHANNEL MIXED SIGNAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MSO2202A
ActiveRIGOL Technologies, Inc
200 MHZ, 2 CHANNEL MIXED SIGNAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MSO2202A |
|---|---|
| Bandwidth | 200 MHz |
| Channels | 2 |
| Display Type | LCD - Color |
| Function | Record |
| Includes | Probe, Power Cord, USB Cable, Bag, Manual |
| Input Impedance | 1 M, 15 pF |
| Interface | RS232, Ethernet, USB |
| Rise Time (Typ) | 1.8 ns |
| Sampling Rate (Per Second) | 1 G |
| Type | Bench |
| Voltage - Input (Max) | 300 V |
| Voltage - Supply [Max] | 240 VAC |
| Voltage - Supply [Min] | 100 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 1049.00 | |
Description
General part information
MSO2202A
200 MHz Bench Oscilloscopes Ethernet, RS232, USB Interface LCD - Color Display 2 Channel CAT II 300V Record
