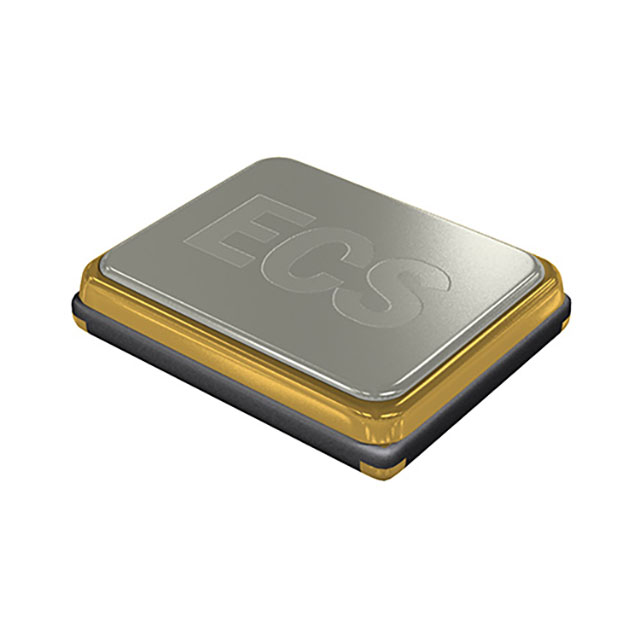

ECS-250-18-33B-JGN-TR
ActiveECS Inc.
CRYSTAL 25.000 MHZ 18 PF SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ECS-250-18-33B-JGN-TR
ActiveECS Inc.
CRYSTAL 25.000 MHZ 18 PF SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ECS-250-18-33B-JGN-TR |
|---|---|
| ESR (Equivalent Series Resistance) | 40 Ohms |
| Frequency | 25 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 20 ppm |
| Height - Seated (Max) [Max] [z] | 0.8 mm |
| Height - Seated (Max) [Max] [z] | 0.031 " |
| Load Capacitance | 18 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.53 | |
| 10 | $ 0.46 | |||
| 50 | $ 0.41 | |||
| 100 | $ 0.39 | |||
| 500 | $ 0.35 | |||
| Digi-Reel® | 1 | $ 0.53 | ||
| 10 | $ 0.46 | |||
| 50 | $ 0.41 | |||
| 100 | $ 0.39 | |||
| 500 | $ 0.35 | |||
| Tape & Reel (TR) | 1000 | $ 0.25 | ||
| 2000 | $ 0.24 | |||
| 3000 | $ 0.24 | |||
Description
General part information
ECS-250-18-33B-JGN-TR
25 MHz ±20ppm Crystal 18pF 40 Ohms 4-SMD, No Lead
