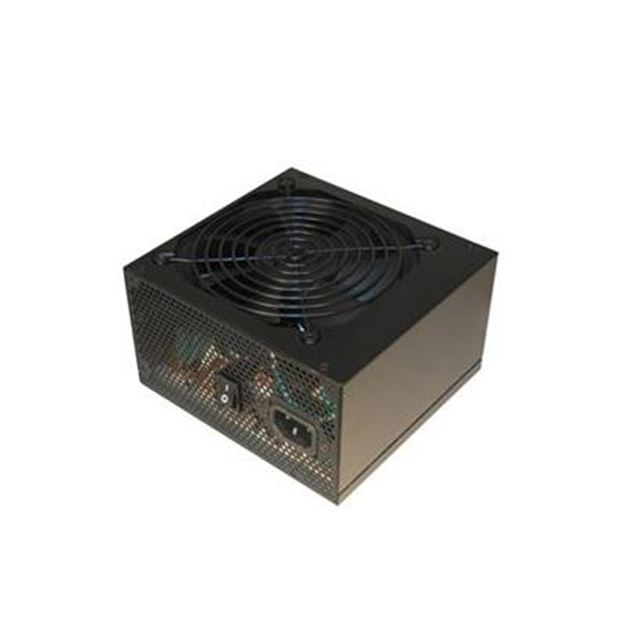

ATX-0250GA
ActiveEnhance Electronics
AC/DC CNVT 3.3V 5V 2X12V -12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ATX-0250GA |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, NEMKO, CCC, cURus, CB, FCC, cUL |
| Current - Output 1 | 24 A |
| Current - Output 2 | 20 A |
| Current - Output 3 | 20 A |
| Current - Output 5 | 300 mA |
| Efficiency | 83.39 % |
| Features | Standby Output, Universal Input, PFC |
| Number of Outputs | 5 |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 663 W |
| Size / Dimension [x] | 149.9 mm |
| Size / Dimension [x] | 5.9 in |
| Size / Dimension [y] | 139.7 mm |
| Size / Dimension [y] | 5.5 in |
| Size / Dimension [z] | 85.9 mm |
| Size / Dimension [z] | 3.38 " |
| Type | ATX |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output 1 | 3.3 V |
| Voltage - Output 2 | 5 V |
| Voltage - Output 3 | 12 V |
| Voltage - Output 4 | 12 V |
| Voltage - Output 5 [custom] | -12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 78.00 | |
Description
General part information
ATX-0250GA
ATX AC DC Converters 5 Output 3.3V 5V 12V 12V 90 ~ 264 VAC Input
