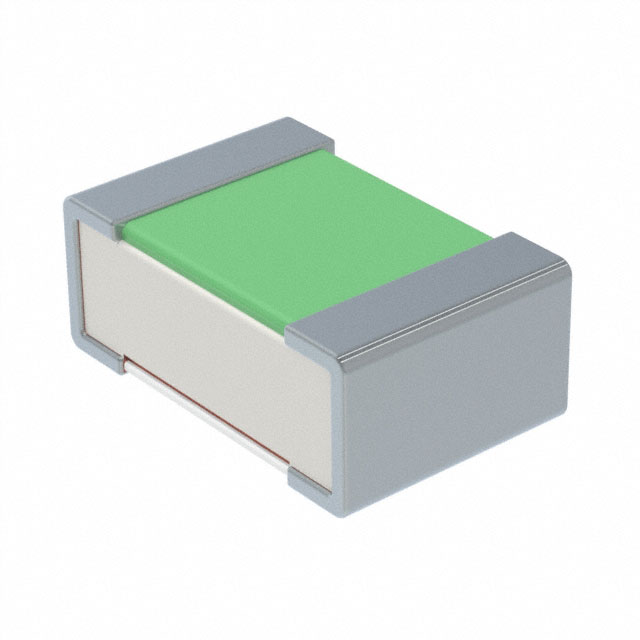

RLT1220-F-R100-FNH
ActiveDelta Electronics/Cyntec
RES 0.1 OHM 1% 1/3W 0805
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RLT1220-F-R100-FNH
ActiveDelta Electronics/Cyntec
RES 0.1 OHM 1% 1/3W 0805
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RLT1220-F-R100-FNH |
|---|---|
| Composition | Thick Film |
| Height - Seated (Max) [Max] [z] | 0.6 mm |
| Height - Seated (Max) [Max] [z] | 0.024 in |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0805 |
| Power (Watts) | 0.333 W |
| Power (Watts) | 0.3333333333333333 W |
| Resistance | 0.1 Ohms |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.049 in |
| Size / Dimension [y] | 1.25 mm |
| Supplier Device Package | 0805 |
| Temperature Coefficient [Max] | 200 ppm/°C |
| Temperature Coefficient [Min] | 0 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.53 | |
| 10 | $ 0.36 | |||
| 25 | $ 0.30 | |||
| 50 | $ 0.25 | |||
| 100 | $ 0.19 | |||
| 250 | $ 0.17 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.11 | |||
| Digi-Reel® | 1 | $ 0.53 | ||
| 10 | $ 0.36 | |||
| 25 | $ 0.30 | |||
| 50 | $ 0.25 | |||
| 100 | $ 0.19 | |||
| 250 | $ 0.17 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.11 | |||
| Tape & Reel (TR) | 5000 | $ 0.10 | ||
| 10000 | $ 0.10 | |||
| 25000 | $ 0.09 | |||
| 50000 | $ 0.09 | |||
Description
General part information
RLT1220-F-R100-FNH
100 mOhms ±1% 0.333W, 1/3W Chip Resistor 0805 (2012 Metric) Thick Film
