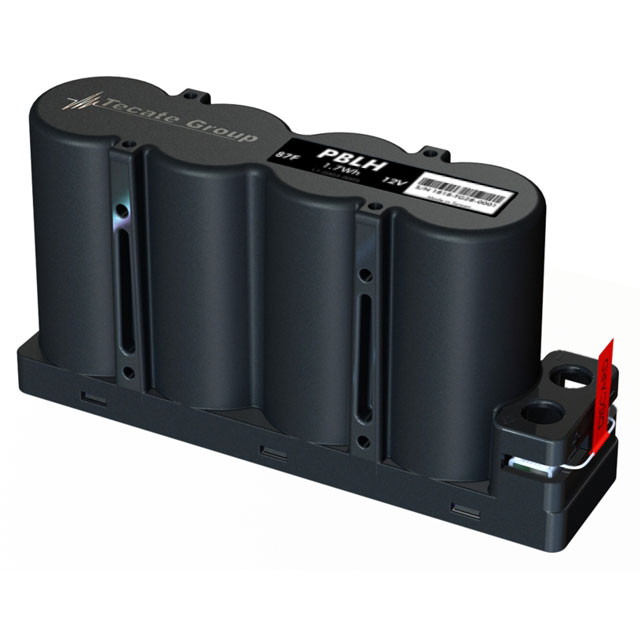

PBLH-12R0/87ST
ActiveTecate Group
CAP EDLC 87F 12V UCAP PACK
Deep-Dive with AI
Search across all available documentation for this part.
PBLH-12R0/87ST
ActiveTecate Group
CAP EDLC 87F 12V UCAP PACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PBLH-12R0/87ST |
|---|---|
| Capacitance | 87 F |
| ESR (Equivalent Series Resistance) | 20 mOhm |
| Height - Seated (Max) [Max] [z] | 3.543 in |
| Height - Seated (Max) [Max] [z] | 90 mm |
| Lifetime @ Temp. | 1500 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Size / Dimension [x] | 168 mm |
| Size / Dimension [x] | 6.614 " |
| Size / Dimension [y] | 1.654 " |
| Size / Dimension [y] | 42 mm |
| Termination | Screw Terminals |
| Voltage - Rated | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 106.62 | |
| 20 | $ 100.00 | |||
| 100 | $ 92.65 | |||
Description
General part information
PBLH-12R0/87ST
87 F (EDLC) Supercapacitor 12 V Module 20mOhm @ 1kHz 1500 Hrs @ 65°C
