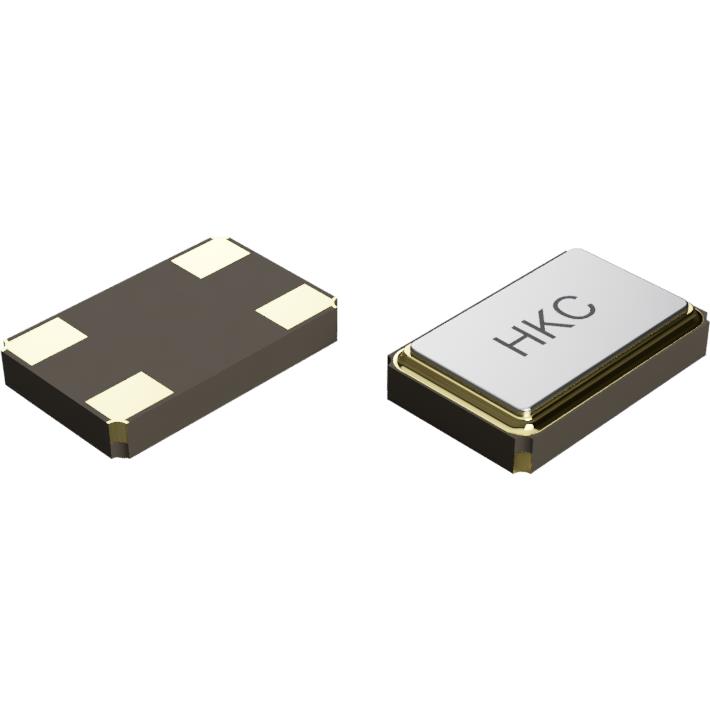

5032S42194BMDAFDGFF-TR
ActiveHKC
CRYSTAL 21.948717MHZ, 20PPM, 5
Deep-Dive with AI
Search across all available documentation for this part.
5032S42194BMDAFDGFF-TR
ActiveHKC
CRYSTAL 21.948717MHZ, 20PPM, 5
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5032S42194BMDAFDGFF-TR |
|---|---|
| ESR (Equivalent Series Resistance) | 60 Ohms |
| Frequency | 21.948717 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance | 20 ppm |
| Height - Seated (Max) [Max] | 0.039 " |
| Height - Seated (Max) [Max] | 1 mm |
| Load Capacitance | 12 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 0.126 " |
| Size / Dimension [y] | 3.2 mm |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 0.44 | |
| 3000 | $ 0.40 | |||
| 6000 | $ 0.36 | |||
| 9000 | $ 0.32 | |||
Description
General part information
5032S42194BMDAFDGFF-TR
21.948717 MHz ±20ppm Crystal 12pF 60 Ohms 4-SMD, No Lead
Documents
Technical documentation and resources
No documents available
