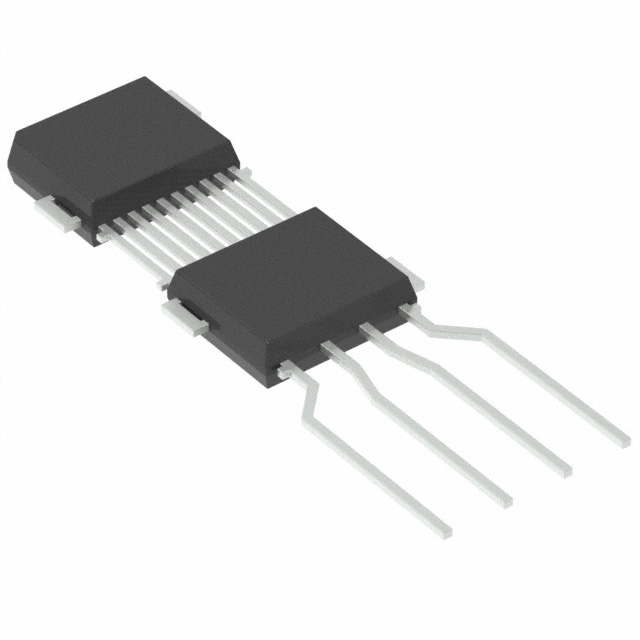

MLX90364LVS-AEE-203-RX
ActiveMelexis Technologies NV
SENSR ROTRY/LNEAR ANLG/PWM 4DMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MLX90364LVS-AEE-203-RX
ActiveMelexis Technologies NV
SENSR ROTRY/LNEAR ANLG/PWM 4DMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MLX90364LVS-AEE-203-RX |
|---|---|
| Actuator Type | External Magnet, Not Included |
| For Measuring | Rotary Position, Linear |
| Grade | Automotive |
| Mounting Type | Through Hole |
| Output | PWM, Analog Voltage |
| Output Signal | Programmable |
| Package / Case | 4-SIP Module, Formed Leads |
| Qualification | AEC-Q100 |
| Rotation Angle - Electrical, Mechanical [Max] | 360 ° |
| Rotation Angle - Electrical, Mechanical [Min] | 0 ° |
| Supplier Device Package | 4-DMP |
| Technology | Hall Effect |
| Termination Style | PC Pin |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 9.42 | |
| Digi-Reel® | 1 | $ 9.42 | ||
| Tape & Reel (TR) | 2500 | $ 4.57 | ||
Description
General part information
MLX90364LVS-AEE-203-RX
Hall Effect Sensor Linear, Rotary Position External Magnet, Not Included PC Pin
