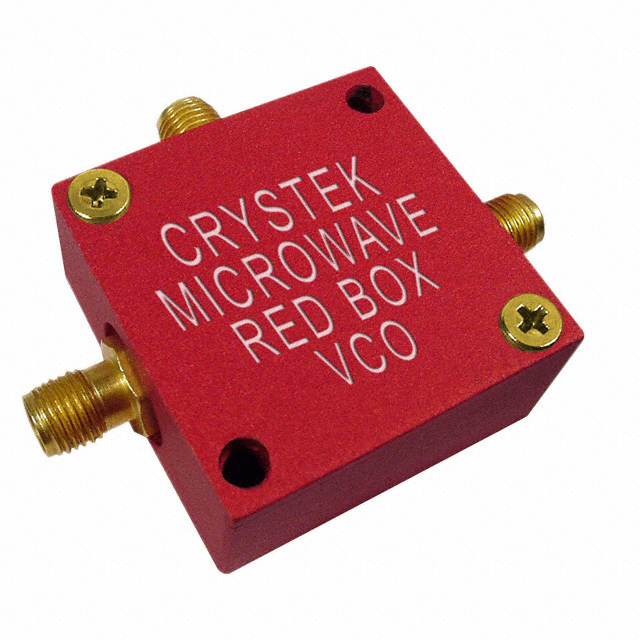

CRBV55BE-2300-2500
ActiveCrystek Corporation
VCO 2400MHZ 0.5-11V 31.75X14.99
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CRBV55BE-2300-2500
ActiveCrystek Corporation
VCO 2400MHZ 0.5-11V 31.75X14.99
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CRBV55BE-2300-2500 |
|---|---|
| 2nd Harmonic, Typ (dBc) | -12 dBc |
| Frequency - Center | 2400 MHz |
| Frequency Range [Max] | 2.5 GHz |
| Frequency Range [Min] | 2.3 GHz |
| Icc Max [Max] | 29 mA |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module Adapter, SMA F (3) |
| Phase Noise Typ (dBc/Hz) | -103 dBc/Hz |
| Power (dBm) | 6 dBm |
| Size / Dimension [x] | 1.25 " |
| Size / Dimension [x] | 31.75 mm |
| Size / Dimension [y] | 14.99 mm |
| Size / Dimension [y] | 0.59 in |
| Tuning Voltage (VDC) [Max] | 11 V |
| Tuning Voltage (VDC) [Min] | 0.5 V |
| Voltage - Supply | 8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 89.38 | |
Description
General part information
CRBV55BE-2300-2500
2400MHz Center Frequency 0.5 V ~ 11 V Voltage Controlled Oscillator 6 ±4 dBm -12 2nd Harmonic Typ (dBc)
